In Stock Hot Product
FOC-ST:A-SJ:A-GZ02/2

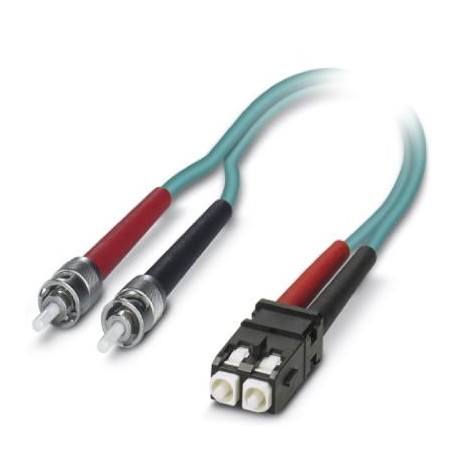

FOC-ST:A-SJ:A-GZ02/2 1400711 PHOENIX CONTACT FO patch cable
$0.00USD
3385 in stock
Key Specifications
GTIN:4046356735087
Note:Made to Order (non-returnable)
Orderkey:1400711
Catalog page:Page 419 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356735087 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1400711 |
| Catalog page | Page 419 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85447000 |
| (Line characteristics) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| China RoHS (Line characteristics) | Environmentally Friendly Use Period = 50 |
| Transmission speed (Material data) | OM3 |
| Type of cable (Key Commercial Data) | Zip cord |
| Weight per Piece (excluding packing) | 22.220 g |
| Ferrule material (Ambient conditions) | Zirconia ceramics |
| Length of cable (Key Commercial Data) | 2.00 m |
| Cable type (Standards and Regulations) | Fiberglass |
| Wire colors (Standards and Regulations) | - |
| Cable weight (Standards and Regulations) | 15.80 kg/km |
| Halogen-free (Standards and Regulations) | complying with IEC 60754-1/2 |
| Halogen-free (Electrical characteristics) | complying with IEC 60754-1/2 |
| Number of positions (Key Commercial Data) | 2 |
| Type of cable (Standards and Regulations) | Zip cord |
| Degree of protection (Key Commercial Data) | IP20 |
| External sheath, color (Ambient conditions) | aqua |
| cable layer type (Standards and Regulations) | Indoors |
| Cable abbreviation (Standards and Regulations) | I-V(ZN)H |
| Cable, attenuation (Standards and Regulations) | 2.5 dB/km (at 850 nm), 0.7 dB/km (at 1300 nm) |
| External sheath, color (Standards and Regulations) | aqua |
| Ambient temperature (assembly) (Mechanical characteristics) | -5 °C ... 50 °C |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -10 °C ... 60 °C |
| Tensile strength short-term/long-term (Standards and Regulations) | 600 N |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
| Ambient temperature (storage/transport) (Mechanical characteristics) | -10 °C ... 60 °C |
| Smallest bending radius, fixed installation (Standards and Regulations) | 15 mm |
| Smallest bending radius, movable installation (Standards and Regulations) | 30 mm |
Product Description
Ready-made fibre optic cable, zipcord cable, multimode fibreglass 50/125 μm, OM3, connector: B-FOC (ST)/SC-RJ, degree of protection: IP20, for cable ducting or control cabinet arrangements, length: 2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
