FMC 1,5/19-ST-3,81

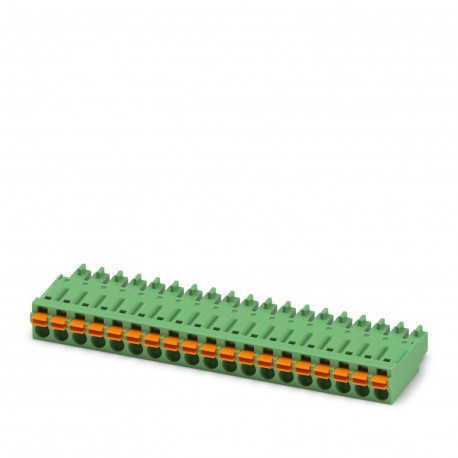

FMC 1,5/19-ST-3,81 1748147 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
4156 in stock
Key Specifications
GTIN:4046356311182
Note:Made to Order (non-returnable)
Orderkey:1748147
Packing unit:50 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356311182 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1748147 |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| (Connection data) | Cross section: 1.5 mm²; Length: 10 mm |
| Custom tariff number | 85366990 |
| Minimum order quantity | 50 pc |
| Pitch (Key Commercial Data) | 3.81 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Stripping length (Dimensions) | 10 mm |
| (Specifications for ferrules) | CUL |
| Connection method (Dimensions) | Push-in spring connection |
| Range of articles (Dimensions) | FMC 1,5/..-ST |
| Nominal current IN (Dimensions) | 8 A |
| Insulating material (Dimensions) | PA |
| Number of positions (Dimensions) | 19 |
| Dimension a (Key Commercial Data) | 68.58 mm |
| Maximum load current (Dimensions) | 8 A |
| Rated voltage (II/2) (Dimensions) | 320 V |
| Width [ w ] (Key Commercial Data) | 72.83 mm |
| Height [ h ] (Key Commercial Data) | 7.75 mm |
| Length [ l ] (Key Commercial Data) | 21.9 mm |
| Nominal cross section (Dimensions) | 1.5 mm² |
| Rated voltage (III/2) (Dimensions) | 160 V |
| Rated voltage (III/3) (Dimensions) | 160 V |
| Weight per Piece (excluding packing) | 10.500 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Internal cylindrical gage (Dimensions) | A1 |
| Rated surge voltage (II/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/3) (Dimensions) | 2.5 kV |
| Maximum AWG according to UL/CUL (General) | 16 |
| Minimum AWG according to UL/CUL (General) | 24 |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 24 |
| Conductor cross section solid max. (General) | 1.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Recommended crimping pliers (Connection data) | 1212034 CRIMPFOX 6 |
| Conductor cross section flexible max. (General) | 1.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Connection in acc. with standard (Specifications for ferrules) | EN-VDE |
| Flammability rating according to UL 94 (Specifications for ferrules) | V0 |
| Ferrules without insulating collar, according to DIN 46228‑1 (Connection data) | Cross section: 0.25 mm²; Length: 5 mm ... 7 mm |
| Conductor cross section flexible, with ferrule with plastic sleeve max. (General) | 1 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. (General) | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. (General) | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. (General) | 0.25 mm² |
Product Description
Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 19,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
