FMC 0,5/12-ST-2,54 C2

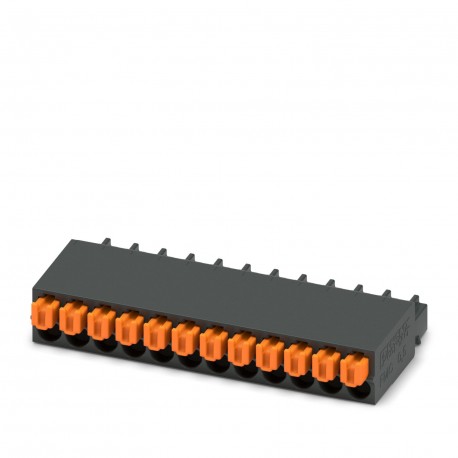

FMC 0,5/12-ST-2,54 C2 1706232 PHOENIX CONTACT Plug component, Nominal current: 6 A, Rated voltage (III/2): 1..
$0.00USD
3807 in stock
Key Specifications
:0.14 mm² / flexible / > 10 N
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Type:Standard
Pitch:2.54 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 0.14 mm² / flexible / > 10 N | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Type | Standard |
| Pitch | 2.54 mm |
| Result | Test passed |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Frequency | 10 - 500 - 10 Hz |
| Width [w] | 30.98 mm |
| Height [h] | 5.35 mm |
| Length [l] | 14 mm |
| Sweep speed | 1 octave/min |
| Acceleration | 5g (60.1 Hz ... 500 Hz) |
| Locking type | without |
| Product line | COMBICON Connectors XS |
| Product type | PCB connector |
| No. of cycles | 100 |
| Specification | IEC 60999-1:1999-11 |
| Number of rows | 1 |
| Product family | FMC 0,5/..-ST |
| Thermal stress | 100 °C/168 h |
| Color (Housing) | black (9005) |
| Mounting flange | without |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Article revision | 05 |
| Connector system | COMBICON FMC 0,5 |
| Contact material | Cu alloy |
| Corrosive stress | 1.0 dm3SO2on 300 dm3/40 °C/3 cycles |
| Stripping length | 7 mm |
| Connection method | Push-in spring connection |
| Type of packaging | packed in cardboard |
| Contact resistance | 2.7 mΩ |
| Nominal current IN | 6 A |
| Nominal voltage UN | 160 V |
| Dimensional drawing | |
| Insulating material | LCP |
| Number of positions | 12 |
| Number of potentials | 12 |
| Rated voltage (II/2) | 160 V |
| Contact resistance R1 | 2.7 mΩ |
| Contact resistance R2 | 2.6 mΩ |
| Nominal cross section | 0.5 mm² |
| Number of connections | 12 |
| Rated voltage (III/2) | 160 V |
| Rated voltage (III/3) | 32 V |
| Test duration per axis | 2 h |
| Contact connection type | Socket |
| Surface characteristics | partially gold-plated |
| Color (Actuating element) | orange (2003) |
| Insulating material group | IIIa |
| recommended crimping tool | 1212034 CRIMPFOX 6 |
| CTI according to IEC 60112 | 175 |
| Rated surge voltage (II/2) | 1.5 kV |
| Tested number of positions | 16 |
| Conductor cross section AWG | 26 ... 20 |
| Insertion/withdrawal cycles | 100 |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (III/3) | 0.8 kV |
| Conductor cross section rigid | 0.14 mm² ... 0.5 mm² |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Rated insulation voltage (II/2) | 160 V |
| Conductor cross section flexible | 0.14 mm² ... 0.5 mm² |
| Rated insulation voltage (III/2) | 160 V |
| Rated insulation voltage (III/3) | 32 V |
| minimum creepage distance (II/2) | 1.6 mm |
| Power-frequency withstand voltage | 1.39 kV |
| minimum creepage distance (III/2) | 1.6 mm |
| minimum creepage distance (III/3) | 1.3 mm |
| Conductor/PCB connection direction | 0 ° |
| Cylindrical gauge a x b / diameter | - / 1.0 mm |
| Withdraw strength per pos. approx. | 2 N |
| Insertion strength per pos. approx. | 2 N |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Impulse withstand voltage at sea level | 2.95 kV |
| Metal surface contact area (top layer) | Gold (0.25 Au) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI 175 |
| Metal surface terminal point (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface contact area (middle layer) | Nickel (2 - 3 µm Ni) |
| Metal surface terminal point (middle layer) | Nickel (2 - 3 µm Ni) |
| Insulation resistance, neighboring positions | > 5 MΩ |
| minimum clearance value - non-homogenous field (II/2) | 0.5 mm |
| minimum clearance value - non-homogenous field (III/2) | 1.5 mm |
| minimum clearance value - non-homogenous field (III/3) | 0.8 mm |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.14 mm² ... 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.34 mm² |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.14 mm² / solid / > 10 N |
Product Description
Connector for printed circuit board, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Female, number of potentials: 12
