FLM DO 4 M8-2A

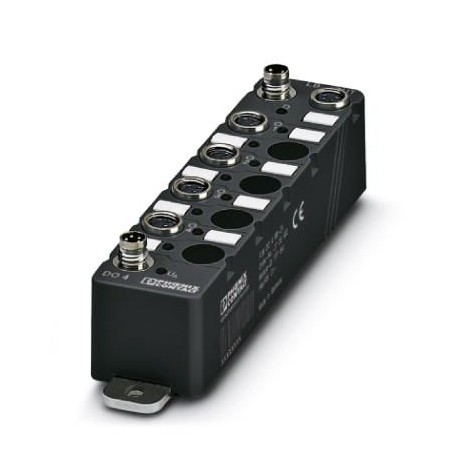

FLM DO 4 M8-2A 2736932 PHOENIX CONTACT Distributed I/O device
$0.00USD
4838 in stock
Key Specifications
GTIN:4046356087193
Note:Made to Order (non-returnable)
Orderkey:2736932
Catalog page:Page 217 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356087193 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2736932 |
| Catalog page | Page 217 (C-6-2017) |
| Depth (Note) | 26.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 29.8 mm |
| Height (Note) | 143 mm |
| Caption (Note) | Side view (dimensions in mm) |
| Country of origin | DE (Germany) |
| Custom tariff number | 85176200 |
| Designation (General) | Fieldline local bus |
| (Electrical isolation) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g in each space direction |
| Designation (Interfaces) | UL |
| Drill hole spacing (Note) | 133 mm |
| Note on dimensions (Note) | Length details incl. fixing clips |
| Dimensional drawing (Note) | |
| Connection method (General) | 2 M8 male connector |
| Supply current (Interfaces) | 3 A |
| Supply voltage (Interfaces) | 24 V DC |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Transmission speed (General) | 500 kbps |
| Number of positions (General) | 5 |
| Connection method (Interfaces) | M8 connector |
| Test section (Digital outputs) | To I/O 500 V AC |
| Net weight (Ambient conditions) | 137 g |
| Number of positions (Interfaces) | 4 |
| Degree of protection (Dimensions) | IP65/IP67 |
| Supply voltage range (Interfaces) | 18 V DC ... 30 V DC (including ripple) |
| Mounting type (Ambient conditions) | Wall mounting |
| Output name (Fieldline potentials) | Digital outputs |
| Weight per Piece (excluding packing) | 137.000 g |
| Air pressure (operation) (Dimensions) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Output voltage (Fieldline potentials) | 24 V DC |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Designation connection point (General) | Copper cable |
| Mechanical tests (Electrical isolation) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Load 30g, half sine wave, positive and negative per direction |
| Protection class (Electrical isolation) | III, IEC 61140, EN 61140, VDE 0140-1 |
| Connection method (Fieldline potentials) | M8 connector |
| Number of outputs (Fieldline potentials) | 4 |
| Type of protection (Fieldline potentials) | Short-circuit protection |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Connection technology (Fieldline potentials) | 2, 3-wire |
| Air pressure (storage/transport) (Dimensions) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Utilization restriction (Key Commercial Data) | 1 |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 95 % |
| Connection in acc. with standard (Electrical isolation) | CUL |
| Voltage supply UL (Power supply for module electronics) | 24 V DC |
| Maximum output current per channel (Fieldline potentials) | 2 A |
Product Description
The space-saving local bus system is specially designed for use in the immediate vicinity of the process. Functions: 4 digital outputs each with 2 A chargeable, precise diagnostics per channel, protec
