FLKM-D50 SUB/B

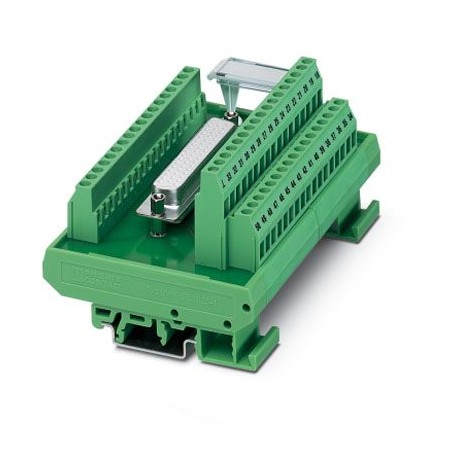

FLKM-D50 SUB/B 2281225 PHOENIX CONTACT Interface module
$0.00USD
3394 in stock
Key Specifications
GTIN:4017918054656
Note:Made to Order (non-returnable)
Orderkey:2281225
Catalog page:Page 225 (IF-2002)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918054656 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2281225 |
| Catalog page | Page 225 (IF-2002) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | 1.5 A (with even load on all branches) |
| Screw thread (General) | M3 |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 58.5 mm |
| Width (Key Commercial Data) | 112.5 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 77 mm |
| (Connection data for connection 1) | DIN VDE 0160 (in parts) |
| Weight per Piece (excluding packing) | 241.200 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Number of positions (Ambient conditions) | 50 |
| Degree of protection (Ambient conditions) | IP20 |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard (General) | IEC / EN |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Max. perm. operating voltage (Ambient conditions) | 25 V AC |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Max. perm. current (per branch) (Ambient conditions) | 2.5 A |
| Degree of pollution (Connection data for connection 1) | 2 |
| Rated surge voltage (Connection data for connection 1) | 1.2 kV (Functional insulation) |
| Overvoltage category (Connection data for connection 1) | II |
| Standards/regulations (Connection data for connection 1) | IEC 60664 |
| Rated insulation voltage (Connection data for connection 1) | 125 V |
| Connection in acc. with standard (Connection data for connection 1) | CUL |
Product Description
VARIOFACE module, with screw connection and subminiature female connector D, for mounting on NS 35/7.5 or NS 32, number of poles 50
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
