FLKM 64/ZFKDS

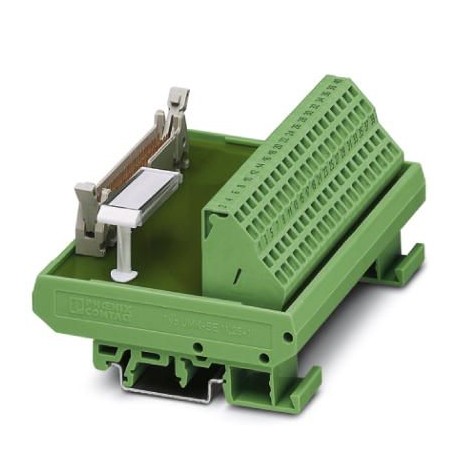

FLKM 64/ZFKDS 2302971 PHOENIX CONTACT Interface module
$0.00USD
4161 in stock
Key Specifications
GTIN:4017918941482
Note:Made to Order (non-returnable)
Orderkey:2302971
Catalog page:Page 302 (IF-2011)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918941482 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2302971 |
| Catalog page | Page 302 (IF-2011) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| (Ambient conditions) | 60 V DC |
| Connection name (General) | Field level |
| Connection method (General) | Spring-cage connection |
| Depth (Key Commercial Data) | 51 mm |
| Width (Key Commercial Data) | 169 mm |
| Height (Key Commercial Data) | 77 mm |
| (Connection data for connection 2) | DIN EN 50178 |
| Weight per Piece (excluding packing) | 220.670 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| Mounting position (Ambient conditions) | any |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Number of positions (Ambient conditions) | 64 |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Max. perm. operating voltage (Ambient conditions) | < 50 V AC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | IDC/FLK pin strip |
| Max. perm. current (per branch) (Ambient conditions) | 1 A |
| Number of positions (Connection data for connection 1) | 64 |
| Number of connections (Connection data for connection 1) | 1 |
| Standards/regulations (Connection data for connection 2) | IEC 60664 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
