FLKM 50/D37SUB/M/HC3/AIO

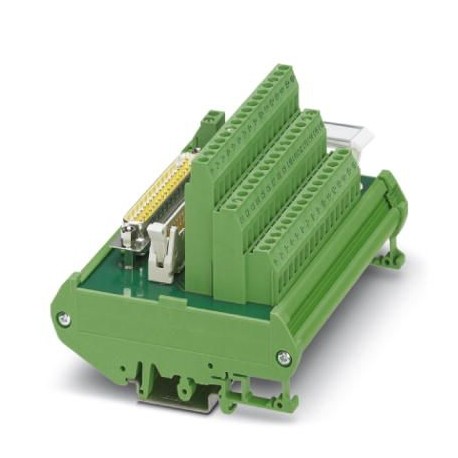

FLKM 50/D37SUB/M/HC3/AIO 2900176 PHOENIX CONTACT Passive module
$0.00USD
3056 in stock
Key Specifications
GTIN:4046356492126
Note:Made to Order (non-returnable)
Orderkey:2900176
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356492126 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2900176 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Screw thread (General) | M3 |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 82 mm |
| Width (Key Commercial Data) | 113 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 90 mm |
| Number of positions (General) | 48 |
| Insulation (Supported controller) | Functional insulation |
| Designation (Supported controller) | Air clearances and creepage distances |
| (Connection data for connection 3) | TAIX11 (redundant) |
| Weight per Piece (excluding packing) | 304.500 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Degree of protection (Ambient conditions) | IP00 |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Degree of pollution (Supported controller) | 2 |
| Rated surge voltage (Supported controller) | 0.5 kV (1.2/50 μs) |
| Overvoltage category (Supported controller) | II |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Standards/regulations (Supported controller) | DIN EN 50178: 1998-04 |
| Controller (Connection data for connection 3) | HONEYWELL Experion PKS C300/C-Series |
| Rated insulation voltage (Supported controller) | 50 V |
| Max. perm. operating voltage (Ambient conditions) | 24 V DC |
| Connection name (Connection data for connection 1) | Controller level |
| Connection name (Connection data for connection 2) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | D-SUB pin strip |
| Connection method (Connection data for connection 2) | FLK pin strip |
| Max. perm. current (per branch) (Ambient conditions) | 0.5 A |
| - suitable I/O card (Connection data for connection 3) | TAIX01 (non-redundant) |
| Number of positions (Connection data for connection 1) | 37 |
| Number of positions (Connection data for connection 2) | 50 |
| Number of connections (Connection data for connection 1) | 1 |
| Number of connections (Connection data for connection 2) | 1 |
Product Description
16-channel module for Honeywell C300 cards. The module is activated on the control side via 37-pole D-SUB or 50-pole FLK. On the field side, a screw connection is available. Module width: 113 mm
