FLKM 50/32M/PLC

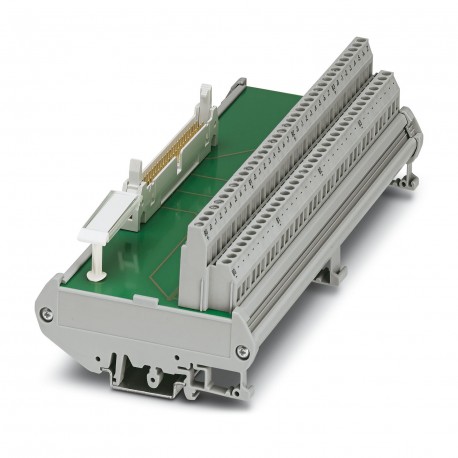

FLKM 50/32M/PLC 2289719 PHOENIX CONTACT Passive module
$0.00USD
4611 in stock
Key Specifications
GTIN:4017918057763
Note:Made to Order (non-returnable)
Orderkey:2289719
Catalog page:Page 529 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918057763 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2289719 |
| Catalog page | Page 529 (C-5-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Screw thread (General) | M3 |
| (Supported controller) | IEC 60664 |
| Connection name (General) | Field level |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 68 mm |
| Width (Key Commercial Data) | 192 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 90 mm |
| Number of positions (General) | 50 |
| Number of connections (General) | 1 |
| Insulation (Supported controller) | Functional insulation |
| (Connection data for connection 2) | 6ES7 522-1BL01-0AB0 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 315.080 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | any |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Number of positions (Ambient conditions) | 50 |
| Pitch (Connection data for connection 1) | 2.54 mm |
| Degree of protection (Ambient conditions) | IP00 |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Degree of pollution (Supported controller) | 2 |
| Rated surge voltage (Supported controller) | 0.6 kV |
| Overvoltage category (Supported controller) | II |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 50 °C |
| Standards/regulations (Supported controller) | DIN EN 50178 |
| Controller (Connection data for connection 2) | SIEMENS S7-1500 |
| Rated insulation voltage (Supported controller) | 63 V |
| Max. perm. operating voltage (Ambient conditions) | 60 V DC |
| Connection name (Connection data for connection 1) | Controller level |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Connection method (Connection data for connection 1) | IDC/FLK pin strip |
| Max. perm. current (per branch) (Ambient conditions) | 1 A |
| - suitable I/O card (Connection data for connection 2) | 6ES7 521-1BL00-0AB0 |
| Number of positions (Connection data for connection 1) | 50 |
| Connection in acc. with standard (Supported controller) | CUL |
| Number of connections (Connection data for connection 1) | 1 |
| Max. permissible current (separate power supply) (Ambient conditions) | 8 A (per byte) |
Product Description
VARIOFACE interconnect module, for 32 channels with an additional terminal block per signal, for a common negative potential
