In Stock Hot Product
FLKM 14/PLC

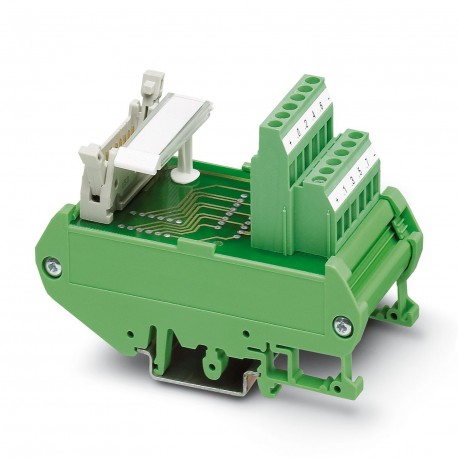

FLKM 14/PLC 2284581 PHOENIX CONTACT Passive module
$0.00USD
4913 in stock
Key Specifications
:DI811
Color:green (RAL 6021)
Depth:68 mm
Pitch:2.54 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DI811 | |
| Color | green (RAL 6021) |
| Depth | 68 mm |
| Pitch | 2.54 mm |
| Width | 45 mm |
| Height | 90 mm |
| Altitude | ≤ 2000 m |
| Insulation | Functional insulation |
| Certificate | UKCA-compliant |
| Product type | Interface module |
| Screw thread | M3 |
| Mounting type | DIN rail mounting |
| Product family | VARIOFACE |
| No. of channels | 8 |
| Pollution degree | 2 |
| Stripping length | 7 mm |
| Connection method | IDC/FLK pin strip |
| Mounting position | any |
| Suitable I/O card | DI810 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Number of positions | 14 |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
| Current (per branch) | ≤ 1 A |
| Overvoltage category | II |
| Number of connections | 1 |
| Standards/regulations | EN IEC 60664-1 |
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Status display present | No |
| Current (Voltage supply) | ≤ 3 A |
| Rated insulation voltage | 63 V |
| Conductor cross section AWG | 24 ... 12 |
| Housing insulation material | Polyamide 6.6 green |
| Insertion/withdrawal cycles | > 50 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Degree of protection (Module) | IP00 |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC 60603-13 |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Degree of protection (Installation location) | ≥ IP54 |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² |
Product Description
VARIOFACE interconnection module, for 8 channels
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
