FL SWITCH SMCS 6GT/2SFP

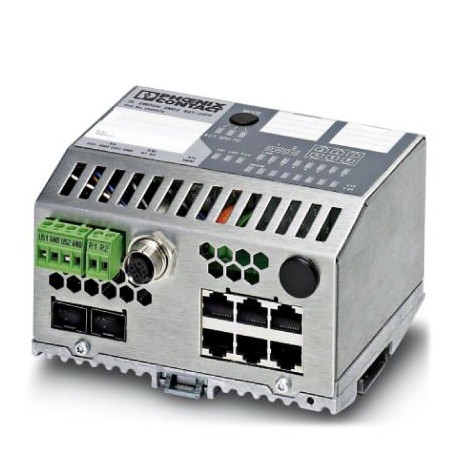

FL SWITCH SMCS 6GT/2SFP 2891479 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
3715 in stock
Key Specifications
GTIN:4046356166089
Orderkey:2891479
Catalog page:Page 415 (C-6-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356166089 |
| Orderkey | 2891479 |
| Catalog page | Page 415 (C-6-2017) |
| Packing unit | 1 pc |
| (Interfaces) | Fast Startup |
| Country of origin | DE (Germany) |
| Custom tariff number | 85176200 |
| Management (Interfaces) | Web-based management (HTTP) |
| Redundancy (Interfaces) | MRP (Media Redundancy Protocol) |
| Type AX (Supply voltage) | Block design |
| Stripping length (General) | 7 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 69 mm |
| Net weight (Supply voltage) | 650 g |
| Width (Key Commercial Data) | 128 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Basic functions (Interfaces) | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
| Height (Key Commercial Data) | 110 mm |
| Filter functions (Interfaces) | Quality of Service (4 priority classes) |
| MAC address table (Interfaces) | 4000 |
| Mounting type (Supply voltage) | DIN rail |
| Supported browsers (Interfaces) | Internet Explorer 5.5 or higher |
| Interface 1 (Ambient conditions) | Ethernet (RJ45) |
| Interface 2 (Ambient conditions) | Fiber optic interface |
| Interface 5 (Ambient conditions) | Serial (RS-232) |
| Noise emission (Connection data) | EN 61000-6-3 +A11 |
| Noise immunity (Connection data) | EN 61000-6-2:2005 |
| Signal LEDs (Ambient conditions) | Supply voltage, data transmission, error, link, activity |
| Additional functions (Interfaces) | BootP |
| Degree of protection (Dimensions) | IP20 |
| Diagnostic functions (Interfaces) | RMON History |
| No. of ports (Ambient conditions) | 2 (SFP ports) |
| Time synchronization (Interfaces) | SNTP |
| Cascading depth (Security functions) | Network, linear, and star structure: any |
| Weight per Piece (excluding packing) | 650.000 g |
| Air pressure (operation) (Dimensions) | 86 kPa ... 108 kPa (2000 m above sea level) |
| PROFINET device function (Interfaces) | PROFINET device |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
| PROFINET conformance class (Interfaces) | Conformance-Class B |
| Transmission speed (Ambient conditions) | 1000 Mbps (full duplex) |
| Vibration (operation) (Connection data) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Transmission length (Ambient conditions) | up to 80 km (Depending on the fiber/SFP module used) |
| Transmission physics (Ambient conditions) | Depending on the SFP module |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Signal contact control current (Interfaces) | 650 mA |
| Signal contact control voltage (Interfaces) | 24 V (typical) |
| Ambient temperature (operation) (Dimensions) | 0 °C ... 55 °C (non-condensing) |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Air pressure (storage/transport) (Dimensions) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Status and diagnostic indicators (Interfaces) | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Supply voltage (Network expansion parameters) | 24 V DC (redundant) |
| Residual ripple (Network expansion parameters) | 3.6 VPP(within the permitted voltage range) |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Electromagnetic compatibility (Connection data) | Conformance with EMC Directive 2014/30/EU |
| Link Layer Discovery Protocol (LLDP) (Function) | As per protocol 802.2 |
| Vibration (storage/transport) (Connection data) | 5g, 10 Hz ... 150 Hz, in accordance with IEC 60068-2-6 |
| Current consumption (Network expansion parameters) | 650 mA |
| Note on the connection method (Ambient conditions) | Auto negotiation and autocrossing |
| Supply voltage range (Network expansion parameters) | 18 V DC ... 32 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Typical current consumption (Network expansion parameters) | 600 mA (at US= 24 V DC) |
| Maximum conductor length (twisted pair) (Security functions) | 100 m |
| Free from substances that could impair the application of coating (Connection data) | Yes |
Product Description
Smart Managed Compact Ethernet Switch with six 10/100/1000 MBit/s RJ45 ports and two 1000 MBit/s SFP slots
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
