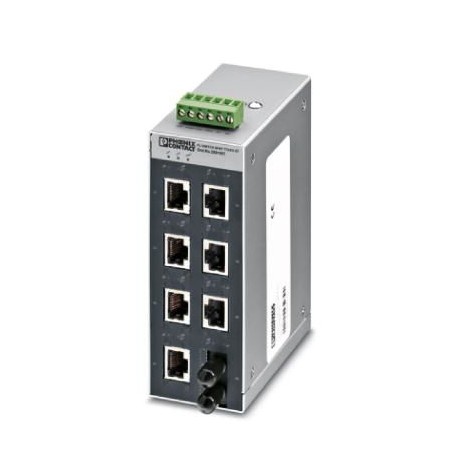

FL SWITCH SFNT 7TX/FX ST
FL SWITCH SFNT 7TX/FX ST 2891007 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
4610 in stock
Key Specifications
GTIN:4046356457224
Orderkey:2891007
Catalog page:Page 395 (C-6-2017)
Depth (Note):100 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356457224 |
| Orderkey | 2891007 |
| Catalog page | Page 395 (C-6-2017) |
| Depth (Note) | 100 mm |
| Packing unit | 1 pc |
| Width (Note) | 50 mm |
| Height (Note) | 130 mm |
| IECEx (General) | Ex nA nC IIC T4 Gc |
| Country of origin | TW (Taiwan) |
| Custom tariff number | 85176200 |
| (Ambient conditions) | 3.1 km (fiberglass with F-G 50/125 1.6 dB/km F800) |
| Conformance (General) | CE-compliant |
| Noise emission (General) | EN 61000-6-4 |
| Noise immunity (General) | EN 61000-6-2 |
| Type AX (Supply voltage) | Block design |
| UL, USA/Canada (General) | Class I, Div. 2, Groups A, B, C, D |
| Cascading depth (Function) | Network, linear, and star structure: any |
| Net weight (Supply voltage) | 470 g |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Basic functions (Interfaces) | Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact |
| Mounting type (Supply voltage) | DIN rail |
| Wavelength (Ambient conditions) | 1300 nm |
| Interface 1 (Ambient conditions) | Ethernet (RJ45) |
| Interface 2 (Ambient conditions) | Fiber optic interface |
| Additional functions (Interfaces) | Autonegotiation |
| Degree of protection (Dimensions) | IP20 |
| Housing material (Supply voltage) | Aluminum |
| No. of ports (Ambient conditions) | 1 (ST multi-mode) |
| Weight per Piece (excluding packing) | 470.000 g |
| Air pressure (operation) (Dimensions) | 62 kPa ... 108 kPa (up to 4160 m above mean sea level) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 10; |
| Electromagnetic compatibility (General) | Conformance with EMC Directive 2004/108/EC |
| Transmission speed (Ambient conditions) | 100 Mbps (full duplex) |
| Transmission length (Ambient conditions) | 12.1 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000) |
| Transmission physics (Ambient conditions) | multi-mode fiberglass |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 75 °C |
| Air pressure (storage/transport) (Dimensions) | 62 kPa ... 108 kPa (up to 4160 m above mean sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Status and diagnostic indicators (Interfaces) | LEDs: US1, US2(redundant voltage supply), link and activity per port |
| Supply voltage (Network expansion parameters) | 24 V DC (redundant) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Residual ripple (Network expansion parameters) | 3.6 VPP(within the permitted voltage range) |
| Maximum conductor length (twisted pair) (Function) | 100 m |
| Note on the connection method (Ambient conditions) | Auto negotiation and autocrossing |
| Supply voltage range (Network expansion parameters) | 9 V DC ... 32 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Max. current consumption (Network expansion parameters) | 565 mA (@9 V DC) |
| Typical current consumption (Network expansion parameters) | 180 mA (at US= 24 V DC) |
Product Description
Ethernet switch for wide temperature range, 7 TP-RJ45 connections, 1 fiber optic connection, 100 MBits/s duplex in ST format, automatic recognition of 10/100 MBit/s data rate (RJ45), Autocrossing func
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
