FL SWITCH SFN 8TX-PN

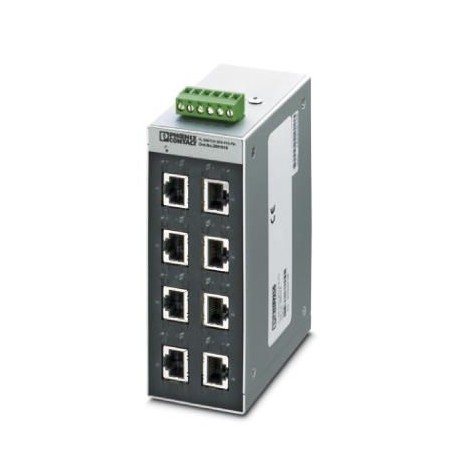

FL SWITCH SFN 8TX-PN 2891018 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
3565 in stock
Key Specifications
GTIN:4046356997300
Orderkey:2891018
Catalog page:Page 388 (C-6-2017)
Depth (Note):100 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356997300 |
| Orderkey | 2891018 |
| Catalog page | Page 388 (C-6-2017) |
| Depth (Note) | 100 mm |
| Packing unit | 1 pc |
| Width (Note) | 50 mm |
| Height (Note) | 130 mm |
| Country of origin | TW (Taiwan) |
| Custom tariff number | 85176200 |
| Noise emission (General) | EN 61000-6-4 |
| Noise immunity (General) | EN 61000-6-2:2005 |
| Type AX (Supply voltage) | Block design |
| Cascading depth (Function) | Network, linear, and star structure: any |
| Net weight (Supply voltage) | 365 g |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Basic functions (Interfaces) | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
| Mounting type (Supply voltage) | DIN rail |
| Interface 1 (Ambient conditions) | Ethernet (RJ45) |
| Additional functions (Interfaces) | Autonegotiation |
| Degree of protection (Dimensions) | IP20 |
| Housing material (Supply voltage) | Aluminum |
| No. of ports (Ambient conditions) | 8 (RJ45 ports) |
| Weight per Piece (excluding packing) | 365.000 g |
| Air pressure (operation) (Dimensions) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 10; |
| PROFINET conformance class (Interfaces) | Conformance-Class A |
| Transmission speed (Ambient conditions) | 10/100 Mbps |
| Transmission physics (Ambient conditions) | Ethernet in RJ45 twisted pair |
| Ambient temperature (operation) (Dimensions) | 0 °C ... 60 °C |
| Air pressure (storage/transport) (Dimensions) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Status and diagnostic indicators (Interfaces) | LEDs: US, link and activity per port |
| Supply voltage (Network expansion parameters) | 24 V DC |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Residual ripple (Network expansion parameters) | 3.6 VPP(within the permitted voltage range) |
| Maximum conductor length (twisted pair) (Function) | 100 m |
| Note on the connection method (Ambient conditions) | Auto negotiation and autocrossing |
| Supply voltage range (Network expansion parameters) | 9 V DC ... 32 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 70 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Typical current consumption (Network expansion parameters) | 140 mA (at US= 24 V DC) |
Product Description
Ethernet switch, 8 TP-RJ45 ports, automatic detection of 10 or 100 Mbit/s data transmission rate (RJ45), with Autocrossing function. The multicast filter blocks PROFINET PTCP-Delay-Traffic.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
