FL SWITCH IRT 4TX

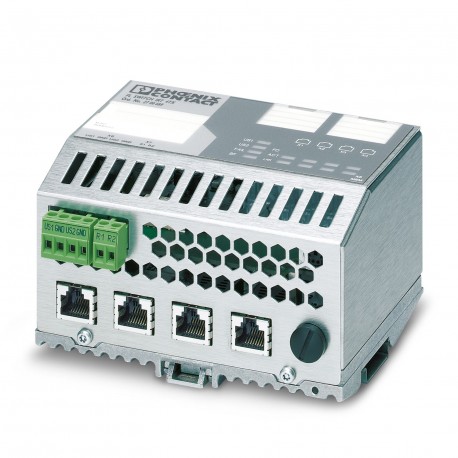

FL SWITCH IRT 4TX 2700689 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
3752 in stock
Key Specifications
GTIN:4046356651479
Note:Made to Order (non-returnable)
Orderkey:2700689
Catalog page:Page 416 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356651479 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2700689 |
| Catalog page | Page 416 (C-6-2017) |
| Depth (Note) | 69 mm |
| Packing unit | 1 pc |
| Width (Note) | 127 mm |
| Height (Note) | 95 mm |
| Country of origin | DE (Germany) |
| (Connection data) | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Custom tariff number | 85176200 |
| Redundancy (Interfaces) | MRP (Media Redundancy Protocol) |
| Type AX (Supply voltage) | Stand-alone |
| Cascading depth (Function) | Line and star structure: As desired |
| Dimensional drawing (Note) | |
| Stripping length (General) | 7 mm |
| Connection method (General) | Screw connection |
| Net weight (Supply voltage) | 450 g |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Basic functions (Interfaces) | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
| Test result (Connection data) | Category 1, Class B |
| Mounting type (Supply voltage) | DIN rail |
| Type of test (Connection data) | Vibration resistance according to IEC 61373, EN 61373 |
| Supported browsers (Interfaces) | Internet Explorer 5.5 or higher |
| Interface 1 (Ambient conditions) | Ethernet |
| Signal LEDs (Ambient conditions) | Supply voltage, data transmission, error, link, activity |
| Degree of protection (Dimensions) | IP20 |
| Housing material (Supply voltage) | Aluminum, transparently anodized |
| No. of ports (Ambient conditions) | 4 (RJ45 ports) |
| PROFINET specification (Interfaces) | PROFINET-IO RT/IRT, Spec. 2.x |
| Material base plate (Supply voltage) | Die-cast aluminum, corrosion-resistant |
| Weight per Piece (excluding packing) | 450.000 g |
| Air pressure (operation) (Dimensions) | 86 kPa ... 108 kPa (2000 m above sea level) |
| PROFINET device function (Interfaces) | PROFINET device |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| PROFINET conformance class (Interfaces) | Conformance-Class C |
| Transmission speed (Ambient conditions) | 10/100 Mbps |
| Vibration (operation) (Connection data) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Transmission length (Ambient conditions) | 100 m (per segment) |
| Transmission physics (Ambient conditions) | Copper |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Signal contact control current (Interfaces) | typical |
| Signal contact control voltage (Interfaces) | 24 V (typical) |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Air pressure (storage/transport) (Dimensions) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Status and diagnostic indicators (Interfaces) | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) |
| Supply voltage (Network expansion parameters) | 24 V DC (redundant) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Residual ripple (Network expansion parameters) | 3.6 VPP(within the permitted voltage range) |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Electromagnetic compatibility (Connection data) | Conformance with EMC Directive 2014/30/EU |
| Vibration (storage/transport) (Connection data) | 5g, 10 Hz ... 150 Hz, in accordance with IEC 60068-2-6 |
| Current consumption (Network expansion parameters) | 165 mA (at 24 V DC) |
| Maximum conductor length (twisted pair) (Function) | 100 m |
| Supply voltage range (Network expansion parameters) | 18.5 V DC ... 30.2 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Max. current consumption (Network expansion parameters) | 165 mA |
| Typical current consumption (Network expansion parameters) | 165 mA (at US= 24 V DC) |
Product Description
Ethernet switch, four ports in RJ45 format for PROFINETRT/IRT, symmetrical rail mountable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
