FL SWITCH 7006/2FX-EIP

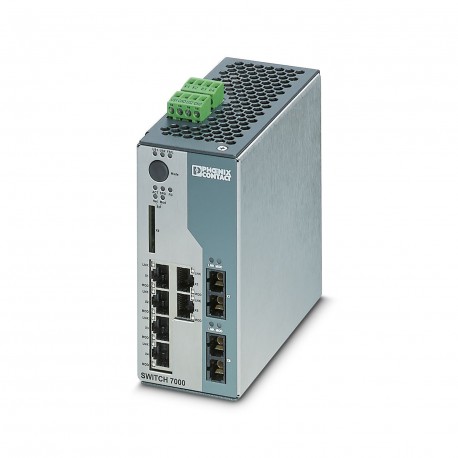

FL SWITCH 7006/2FX-EIP 2701419 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
3567 in stock
Key Specifications
:6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
MTTF:133.47 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
Type:Book type
Depth:135.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200) | |
| MTTF | 133.47 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Type | Book type |
| Depth | 135.5 mm |
| Width | 60 mm |
| Height | 130 mm |
| Management | Web-based management (HTTP/HTTPS) |
| Redundancy | DLR (Device Level Ring) |
| Wavelength | 1300 nm |
| Signal LEDs | Data receive, link status |
| Product type | Switch |
| Test section | 500 V DC 1 min. |
| Mounting type | DIN rail mounting |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Product family | Managed Switch 7000 |
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod |
| Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
| No. of channels | 6 (RJ45 ports) |
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Article revision | 08 |
| Filter functions | Quality of Service (8 priority classes) |
| Noxious gas test | ISA S71.04.2013 G3 Harsh Group A |
| Protection class | III (VDE 0106, IEC 60536) |
| Stripping length | 7 mm |
| Connection method | RJ45 |
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| MAC address table | 16k |
| Power consumption | 11.3 W |
| Special properties | EtherNet/IP™ |
| Transmission speed | 10/100 Mbps |
| IP parameterization | DHCP client |
| Supply voltage (DC) | 24 V DC (redundant) |
| Transmission length | 100 m (per segment) |
| Transmission medium | Copper |
| Additional functions | MAC-based Port-Security |
| Degree of protection | IP20 |
| Diagnostic functions | Remanente Event-Table |
| Supply voltage range | 12 V DC ... 58 V DC |
| Time synchronization | PTP 1588 (Transparent clock on the DLR ports) |
| Transmission physics | Copper |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
| PROFINET device function | Fast Startup |
| PROFINET conformance class | Conformance-Class A |
| Conductor cross section AWG | 24 ... 12 |
| Typical current consumption | 405 mA (at US= 24 V DC) |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Note on the connection method | Auto negotiation and autocrossing |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Signal contact control current | 1 A (maximum) |
| Signal contact control voltage | 24 V DC (typical) |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) EtherNet/IP™ status LED: Net, Mod |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| EtherNet/IP™ supported protocols | Common Industrial Protocol |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Maximum power dissipation for nominal condition | 11.3 W |
| Free from substances that could impair the application of coating | Yes |
Product Description
Managed Switch 7000, 6 RJ45 ports 10/100 MBit/s, 2 multimode SC 100 MBit/s, PROFINET Conformance-Class A, EtherNet/IP™
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
