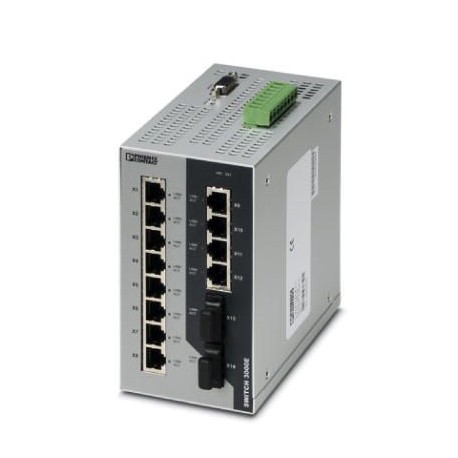

FL SWITCH 3012E-2FX SM
FL SWITCH 3012E-2FX SM 2891119 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
4672 in stock
Key Specifications
GTIN:4055626292762
Orderkey:2891119
Catalog page:Page 427 (C-6-2017)
Depth (Note):125 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626292762 |
| Orderkey | 2891119 |
| Catalog page | Page 427 (C-6-2017) |
| Depth (Note) | 125 mm |
| Packing unit | 1 pc |
| Width (Note) | 78.6 mm |
| Height (Note) | 145 mm |
| Country of origin | TW (Taiwan) |
| Custom tariff number | 85176200 |
| Redundancy (Interfaces) | ERR (Extended ring redundancy) |
| Type AX (Supply voltage) | Block design |
| Cascading depth (Function) | Network, linear, and star structure: any |
| Stripping length (General) | 7 mm |
| Connection method (General) | Pluggable COMBICON screw connections |
| Net weight (Supply voltage) | 1657 g |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Basic functions (Interfaces) | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
| Conformance (Connection data) | CE-compliant |
| Test result (Connection data) | 1 m |
| Mounting type (Supply voltage) | DIN rail |
| Type of test (Connection data) | Free fall in acc. with IEC 60068-2-32 |
| Wavelength (Ambient conditions) | 1300 nm |
| Interface 1 (Ambient conditions) | Ethernet (RJ45) |
| Interface 2 (Ambient conditions) | Fiber optic interface |
| Noise emission (Connection data) | EN 61000-6-4 |
| Noise immunity (Connection data) | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
| Degree of protection (Dimensions) | IP20 |
| Housing material (Supply voltage) | Aluminum |
| No. of ports (Ambient conditions) | 2 (SC single mode) |
| Weight per Piece (excluding packing) | 1,657.000 g |
| Air pressure (operation) (Dimensions) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 10; |
| Transmission speed (Ambient conditions) | 100 Mbps (full duplex) |
| Transmission length (Ambient conditions) | 40 km (fiberglass with F-G 9/125 0.36 dB/km) |
| Transmission physics (Ambient conditions) | Single-mode fiberglass |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Signal contact control current (Interfaces) | 1 A |
| Signal contact control voltage (Interfaces) | 250 V AC |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Air pressure (storage/transport) (Dimensions) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Status and diagnostic indicators (Interfaces) | LEDs: US1, US2(redundant voltage supply), link and activity per port |
| Supply voltage (Network expansion parameters) | 24 V DC (redundant) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Residual ripple (Network expansion parameters) | 3.6 VPP(within the permitted voltage range) |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Maximum conductor length (twisted pair) (Function) | 100 m |
| Note on the connection method (Ambient conditions) | Auto negotiation and autocrossing |
| Supply voltage range (Network expansion parameters) | 12 V DC ... 48 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Typical current consumption (Network expansion parameters) | 320 mA (at US= 24 V DC) |
Product Description
The managed Ethernet switch is compliant with IEC 61850-3 and IEEE 1613 standards. It offers 12 RJ45 ports for 10/100 MBit/s, two fiber optic ports with SM SC-D connection and an operating temperature
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
