FL SWITCH 2108

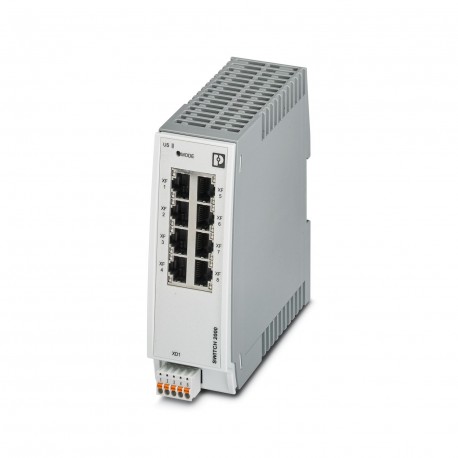

FL SWITCH 2108 2702666 PHOENIX CONTACT Industrial Ethernet Switch
$0.00USD
4491 in stock
Key Specifications
:174.97 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
MTTF:398.76 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
Note:UL 61010-1, Ed. 3 / UL 61010-2-201, Ed. 1, CSA C22.2 NO.61010-2-201:14. Ed. 1 / CSA C22.2 NO.61010-1-12. Ed. 3
Type:Book type
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 174.97 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| MTTF | 398.76 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| Note | UL 61010-1, Ed. 3 / UL 61010-2-201, Ed. 1, CSA C22.2 NO.61010-2-201:14. Ed. 1 / CSA C22.2 NO.61010-1-12. Ed. 3 |
| Type | Book type |
| Depth | 119 mm |
| Width | 45 mm |
| Height | 130 mm |
| General | Support by phone or on-site (fee is charged) |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Management | Web-based management (HTTP/HTTPS) |
| Redundancy | MRP (Media Redundancy Protocol) |
| Signal LEDs | Data receive, link status |
| Product type | Switch |
| Signal delay | ≥ 1.9 µs (Store-and-Forward mode, 10/100/1000 Mbps, depending on the frame size) |
| Test section | 24 V supply / functional ground 500 V DC 1 min. |
| Mounting type | DIN rail mounting |
| Identification | cULus |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 |
| Product family | Managed Switch 2000 |
| Status display | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
| Basic functions | Store-and-forward switch, complies with IEEE 802.3 |
| No. of channels | 8 (RJ45 ports) |
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Article revision | 07 |
| Filter functions | Quality of Service (8 priority classes) |
| Housing material | Polycarbonate fiber reinforced |
| Protection class | III (VDE 0106) |
| Stripping length | 9 mm |
| Connection method | RJ45 |
| Local diagnostics | US Supply voltage Green LED |
| MAC address table | 8k |
| Shock (operation) | 30g (EN 60068-2-27) |
| Special properties | Development process certified in accordance with IEC 62443-4-1 |
| Transmission speed | 10/100/1000 Mbps |
| Current consumption | 275 mA |
| Degree of pollution | 2 |
| Dimensional drawing | |
| IP parameterization | DHCP client |
| Note on application | Only for industrial use |
| Supply voltage (DC) | 24 V DC (single) |
| Transmission length | 100 m (per segment) |
| Transmission medium | Copper |
| Additional functions | Jumbo frames (max. 9,600 bytes) |
| Degree of protection | IP20 |
| Diagnostic functions | RMON History |
| Supply voltage range | 18 V DC ... 32 V DC |
| Time synchronization | SNTP (Simple Network Time Protocol) |
| Transmission physics | Copper |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| Power supply connection | via COMBICON, max. conductor cross section 1.5 mm² |
| Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Max. current consumption | 0.4 A (At US= 18 V DC and 60°C ambient temperature) |
| PROFINET conformance class | Conformance-Class A |
| Conductor cross section AWG | 24 ... 16 |
| Typical current consumption | 275 mA (at US= 24 V DC and 25 °C ambient temperature) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Note on the connection method | Auto negotiation and autocrossing |
| Conductor cross section, rigid | 0.25 mm² ... 1.5 mm² |
| Ambient temperature (operation) | 0 °C ... 60 °C |
| Conformance with EMC directives | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B |
| Air pressure (storage/transport) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Status and diagnostic indicators | LEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed) |
| Conductor cross section, flexible | 0.25 mm² ... 1.5 mm² |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Maximum power dissipation for nominal condition | 7.02 W (At US= 18 V DC and 60°C ambient temperature) |
| Free from substances that could impair the application of coating | Yes |
Product Description
Managed Switch 2000, 8 RJ45 ports 10/100/1000 MBit/s, PROFINET Conformance-Class A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
