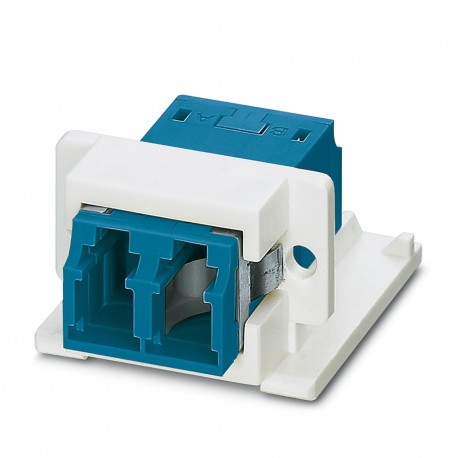

FL SM PATCH COUPLER LC-LC
FL SM PATCH COUPLER LC-LC 2700313 PHOENIX CONTACT Fiber optic coupling
$0.00USD
4031 in stock
Key Specifications
:IP20
Type:Socket
Color:blue
Cable type:Fiberglass
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IP20 | |
| Type | Socket |
| Color | blue |
| Cable type | Fiberglass |
| Fiber type | Single-mode fiberglass |
| Application | Fiber optic coupling |
| Attenuation | ≤ 0.2 dB |
| Sensor type | Ethernet |
| Product type | Data plug |
| Number of slots | 1 |
| Article revision | 02 |
| Ferrule diameter | 1.25 mm |
| Ferrule material | Zirconia ceramics |
| Housing material | PBT |
| Number of fibers | 2 |
| Connection method | Coupling |
| Connection profile | LC-Duplex |
| Number of positions | 2 |
| Degree of protection | IP20 |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (installation) | -40 °C ... 85 °C |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Product Description
LC/LC coupling, usable for unimode fiberglass
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
