FL SFP WDM10-SET

Parameter	Value
GTIN	4055626208299
Note	Made to Order (non-returnable)
Orderkey	2702442
Catalog page	Page 425 (C-6-2017)
Packing unit	1 pc
Country of origin	TW (Taiwan)
Custom tariff number	85176200
(Ambient conditions)	1550 nm / 1310 nm (RX)
Type AX (Supply voltage)	Factoryline devices with SFP slot
Supply voltage (Function)	3.3 V (via Factoryline switch)
Net weight (Supply voltage)	64.3 g
Width (Key Commercial Data)	13.7 mm
Basic functions (Interfaces)	SFP module as FO port
Height (Key Commercial Data)	8.95 mm
Current consumption (Function)	300 mA
Mounting type (Supply voltage)	Insert in SFP slot
Wavelength (Ambient conditions)	1310 nm / 1550 nm (TX)
Interface 2 (Ambient conditions)	Ethernet FO
Signal LEDs (Ambient conditions)	depending on the Factoryline device
Housing material (Supply voltage)	Metal
No. of ports (Ambient conditions)	1 (LC single mode)
Max. current consumption (Function)	300 mA
Weight per Piece (excluding packing)	64.300 g
Transmission speed (Ambient conditions)	1 Gbps
Transmission length (Ambient conditions)	10 km (Fiberglass 9/125)
Transmission physics (Ambient conditions)	Single-mode fiberglass
Ambient temperature (operation) (Dimensions)	-40 °C ... 75 °C
Status and diagnostic indicators (Interfaces)	via a Factoryline device
Ambient temperature (storage/transport) (Dimensions)	-40 °C ... 85 °C (non-condensing)

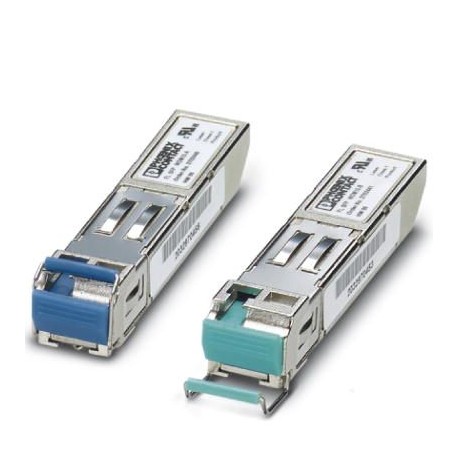

Set of Gigabit SFP-WDM modules for transfer up to 10 km maximum on a fiber with a wavelength of 1310/1550 nm.

Gigabit SFP WDM module for transmission up to a maximum of 10 km on a single fiber with a wavelength of 1310/1550 nm.

FL SFP WDM10-SET 2702442 PHOENIX CONTACT Media module
