FL-PP-RJ45-SC

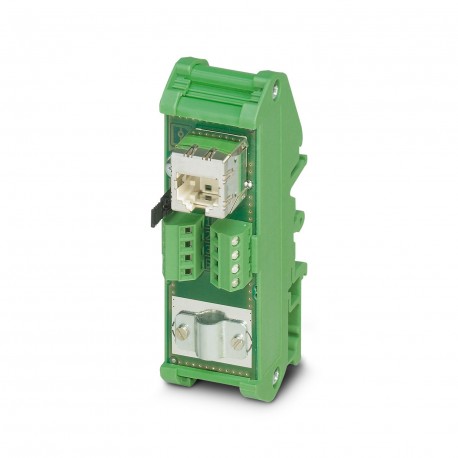

FL-PP-RJ45-SC 2901643 PHOENIX CONTACT Patch panel, one RJ45 socket to 8 screw connection terminal blocks (1:..
$0.00USD
4048 in stock
Key Specifications
:2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
ATEX:Ex II 3 G Ex nA IIC Gc U (Please follow the special installation instructions in the documentation!)
MTBF:6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
Color:green
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | |
| ATEX | Ex II 3 G Ex nA IIC Gc U (Please follow the special installation instructions in the documentation!) |
| MTBF | 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| Color | green |
| Depth | 53 mm |
| Width | 29 mm |
| Height | 90 mm |
| Net weight | 58.08 g |
| Interface 1 | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
| Interface 2 | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
| Pin assignment | 1:1 |
| Housing material | PVC / PA |
| Connection method | Screw connection |
| Transmission length | 100 m (including patch cables) |
| Degree of protection | IP20 |
| Serial transmission speed | 10/100/1000 Mbps |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Conductor cross section AWG max. | 16 |
| Conductor cross section AWG min. | 26 |
| Permissible humidity (operation) | 25 % ... 95 % (non-condensing) |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Product Description
Patch panel, one RJ45 socket in 8 screw terminals (1:1 layout), CAT5e, 10/100/1000 MBit/s, DIN rail adapter, IP20, DIN rail protection contact via jumper
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
