FL PD 1001 T GT

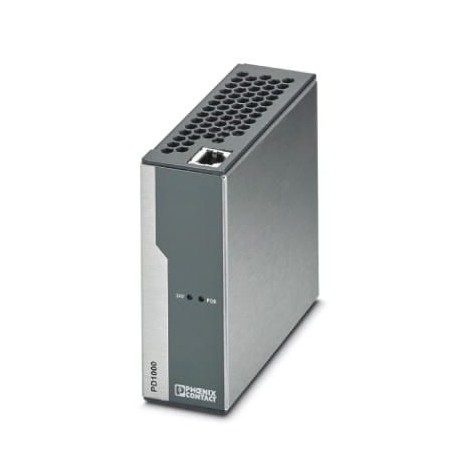

FL PD 1001 T GT 2891042 PHOENIX CONTACT Ethernet module
$0.00USD
3787 in stock
Key Specifications
GTIN:4046356076036
Orderkey:2891042
Catalog page:Page 400 (C-6-2017)
Depth (Note):109 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356076036 |
| Orderkey | 2891042 |
| Catalog page | Page 400 (C-6-2017) |
| Depth (Note) | 109 mm |
| Packing unit | 1 pc |
| Width (Note) | 40 mm |
| Height (Note) | 100 mm |
| (Supply voltage) | 52.81 Years (SN 29500 standard, temperature 70 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
| Country of origin | DE (Germany) |
| Custom tariff number | 85176200 |
| MTTF (Supply voltage) | 1344.41 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| Type AX (Supply voltage) | Stand-alone |
| Net weight (Supply voltage) | 320 g |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Basic functions (Interfaces) | PD, conforms to IEEE 802.3af/at |
| Test result (Connection data) | 30g |
| Mounting type (Supply voltage) | DIN rail |
| Type of test (Connection data) | Free fall in acc. with IEC 60068-2-32 |
| Interface 1 (Ambient conditions) | Ethernet (RJ45) |
| Interface 3 (Ambient conditions) | Ethernet |
| Noise emission (Connection data) | EN 61000-6-4 |
| Noise immunity (Connection data) | EN 61000-6-2:2005 |
| Conductor cross section (General) | 0.14 mm² ... 1.5 mm² |
| Degree of protection (Dimensions) | IP20 |
| Housing material (Supply voltage) | Metal |
| No. of ports (Ambient conditions) | 1 (RJ45 ports) |
| Weight per Piece (excluding packing) | 320.000 g |
| Air pressure (operation) (Dimensions) | 86 kPa ... 108 kPa |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection cross section AWG (General) | 24 ... 12 |
| Connection method (Ambient conditions) | RJ45 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Transmission speed (Ambient conditions) | 10/100/1000 Mbps |
| Vibration (operation) (Connection data) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Transmission length (Ambient conditions) | up to 100 m (complete system) |
| Transmission physics (Ambient conditions) | Copper |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Air pressure (storage/transport) (Dimensions) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Status and diagnostic indicators (Interfaces) | LEDs: POE, 24 V DC |
| Supply voltage (Network expansion parameters) | 48 V DC (via PoE) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Electromagnetic compatibility (Connection data) | Conformance with EMC Directive 2014/30/EU |
| Vibration (storage/transport) (Connection data) | 5g, 150 Hz, in acc. with IEC 60068-2-6 |
| Maximum conductor length (twisted pair) (Function) | 100 m |
| Supply voltage range (Network expansion parameters) | 44 V DC ... 57 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (non-condensing) |
Product Description
Factoryline Power-over-Ethernet (PD) separator for power and data separation according to IEEE 802.3af and at; No configuration is necessary; possibility of operation with 10, 100, 1000 MBit/s network
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
