FL NAT 2208

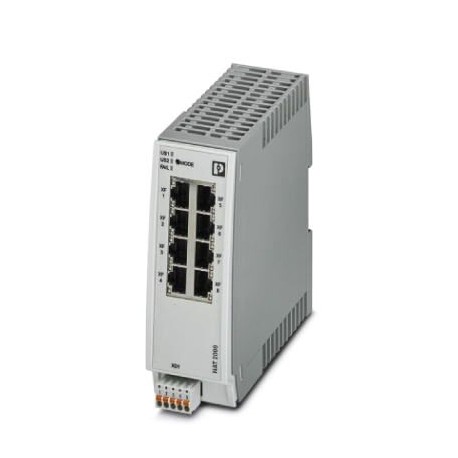

FL NAT 2208 2702882 PHOENIX CONTACT Managed NAT Switch 2000, 8 RJ45 ports 10/100 Mbps, degree of protection:..
$0.00USD
4903 in stock
Key Specifications
GTIN:4055626384825
Orderkey:2702882
Catalog page:Page 328 (C-6-2019)
Depth (Note):115 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626384825 |
| Orderkey | 2702882 |
| Catalog page | Page 328 (C-6-2019) |
| Depth (Note) | 115 mm |
| Packing unit | 1 pc |
| Width (Note) | 45 mm |
| (Interfaces) | BootP |
| Height (Note) | 130 mm |
| (Supply voltage) | 29.73 Years (SN 29500 standard, temperature 70 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
| Country of origin | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC000734 |
| ETIM 6.0 (eCl@ss) | EC000734 |
| ETIM 7.0 (eCl@ss) | EC000734 |
| Custom tariff number | 85176200 |
| MTTF (Supply voltage) | 494.02 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| Note (Supply voltage) | Support by phone or on-site (fee is charged) |
| ATEX (Connection data) | II 3 G Ex ec IIC T4 Gc |
| IECEx (Connection data) | Ex ec IIC T4 Gc |
| Management (Interfaces) | Web-based management (HTTP/HTTPS) |
| Redundancy (Interfaces) | MRP (Media Redundancy Protocol) |
| Type AX (Supply voltage) | Book type |
| UL, USA (Connection data) | UL 60079-0, Ed.6 / UL 60079-7, Ed.5 |
| Cascading depth (Function) | Network, linear, and star structure: any |
| NAT functions (Interfaces) | 1:1-NAT |
| Stripping length (General) | 7 mm |
| Connection method (General) | Screw connection |
| Net weight (Supply voltage) | 260 g |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Basic functions (Interfaces) | Store-and-forward switch, complies with IEEE 802.3 |
| UL, Canada (Connection data) | CSA C22.2 NO.60079-0, Ed.3 / CSA C22.2 NO.60079-7:16 |
| eCl@ss 5.0 (Classifications) | 19030100 |
| eCl@ss 5.1 (Classifications) | 19030100 |
| eCl@ss 6.0 (Classifications) | 19170100 |
| eCl@ss 7.0 (Classifications) | 19170106 |
| eCl@ss 8.0 (Classifications) | 19170106 |
| eCl@ss 9.0 (Classifications) | 19170106 |
| Filter functions (Interfaces) | Quality of Service (8 priority classes) |
| Interface (Ambient conditions) | Ethernet (RJ45) |
| MAC address table (Interfaces) | 8k |
| Mounting type (Supply voltage) | DIN rail |
| Type of test (Connection data) | Free fall in accordance with EN 61131-2 |
| eCl@ss 10.0.1 (Classifications) | 19170401 |
| IP parameterization (Interfaces) | DHCP-Client |
| Immunity to EF (Connection data) | EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A |
| Noise emission (Connection data) | EN 61000-6-4 |
| Noise immunity (Connection data) | EN 61000-6-2 |
| Signal LEDs (Ambient conditions) | Data receive, link status |
| UL, USA/Canada (Connection data) | Class I, Div. 2, Groups A, B, C, D T4Class I, Zone 2, IIC T4 |
| Degree of protection (Dimensions) | IP20 |
| Diagnostic functions (Interfaces) | RMON History |
| Housing material (Supply voltage) | Polycarbonate fiber reinforced |
| Immunity to ESD (Connection data) | EN 61000-6-2 EN 61000-4-2 (ESD) Criterion B |
| No. of ports (Ambient conditions) | 8 (RJ45 ports) |
| Time synchronization (Interfaces) | SNTP (Simple Network Time Protocol) |
| Noxious gas test (Connection data) | ISA S71.04.2013 G3 Harsh Group A |
| Immunity to burst (Connection data) | EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A |
| Immunity to surge (Connection data) | EN 61000-6-2 EN 61000-4-5 (surge) Criterion B |
| Shock (operation) (Connection data) | 30g (EN 60068-2-27) |
| Special properties (Supply voltage) | 1:1-NAT, Virtual NAT, IP-Masquerading |
| Weight per Piece (excluding packing) | 400.000 g |
| Air pressure (operation) (Dimensions) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
| PROFINET device function (Interfaces) | PROFINET device |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Interference emission (Connection data) | EN 61000-6-2 EN 61000-6-4 (interference) Class A |
| PROFINET conformance class (Interfaces) | Conformance-Class B |
| Transmission speed (Ambient conditions) | 10/100 Mbps |
| Vibration (operation) (Connection data) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Transmission length (Ambient conditions) | 100 m (per segment) |
| Transmission physics (Ambient conditions) | Copper |
| Conducted noise emission (Connection data) | EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 28 |
| Signal contact control voltage (Interfaces) | typ. 24 V DC |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Conductor cross section solid max. (General) | 1.5 mm² |
| Conductor cross section solid min. (General) | 0.08 mm² |
| Air pressure (storage/transport) (Dimensions) | 79 kPa ... 108 kPa up to 2000 m above mean sea level (Without derating) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Status and diagnostic indicators (Interfaces) | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed) |
| Supply voltage (Network expansion parameters) | 24 V DC (redundant) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Residual ripple (Network expansion parameters) | 3.6 VPP(within the permitted voltage range) |
| Conductor cross section flexible max. (General) | 1.5 mm² |
| Conductor cross section flexible min. (General) | 0.08 mm² |
| Electromagnetic compatibility (Connection data) | Conformance with EMC Directive 2014/30/EU |
| Vibration (storage/transport) (Connection data) | 5g, 150 Hz, in acc. with IEC 60068-2-6 |
| Current consumption (Network expansion parameters) | 190 mA |
| Maximum conductor length (twisted pair) (Function) | 100 m |
| Note on the connection method (Ambient conditions) | Auto negotiation and autocrossing |
| Supply voltage range (Network expansion parameters) | 9 V DC ... 57 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Immunity to conducted interference (Connection data) | EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A |
| Permissible humidity (storage/transport) (Dimensions) | 10 % ... 95 % (non-condensing) |
| Max. current consumption (Network expansion parameters) | 1.3 A (US= Min, Tamb= Max, DOI= Max) |
| Typical current consumption (Network expansion parameters) | 185 mA (at US= 24 V DC and 25 °C ambient temperature) |
| Free from substances that could impair the application of coating (Connection data) | Yes |
Product Description
Managed NAT Switch 2000, 8 RJ45 ports 10/100 MBit/s, PROFINET Conformance-Class B, 1:1-NAT, Virtual NAT, IP-Masquerading
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
