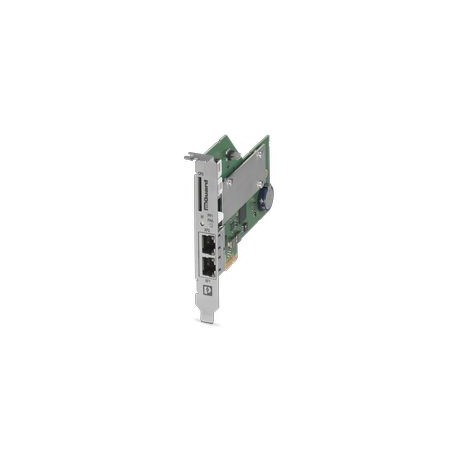

FL MGUARD 4102 PCIE
FL MGUARD 4102 PCIE 1357842 PHOENIX CONTACT Security Appliance, PCIe Card, 10/100/1000 Mbit/s, NAT, Advanced..
$464.52USD
55 in stock
Key Specifications
:max. 850 Mbps (Stealth mode, default firewall rules, unidirectional throughput)
Format:PCIe
Routing:Standard routing, NAT, 1:1-NAT, port forwarding
Filtering:MAC and IP addresses, ports, protocols
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| max. 850 Mbps (Stealth mode, default firewall rules, unidirectional throughput) | |
| Format | PCIe |
| Routing | Standard routing, NAT, 1:1-NAT, port forwarding |
| Filtering | MAC and IP addresses, ports, protocols |
| Signal LEDs | WAN link, WAN activity, LAN link, LAN activity |
| Product type | Security routers without DIN rail mounting |
| Mounting type | PCIe x1-Slot |
| Authentication | X.509v3 certificates with RSA or PSK |
| Data integrity | MD5, SHA-1, SHA 256, SHA-512 |
| Firewall rules | Configurable stateful inspection firewall with full scope of functions |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Status display | Link/activity per port |
| No. of channels | 2 (RJ45 ports) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Connection method | RJ45 |
| Cross section AWG | (converted acc. to IEC) |
| Local diagnostics | One LED per port Activity LED red |
| Encryption methods | DES, 3DES, AES-128, -192, -256 |
| Protection against | IP spoofing, DoS and Syn Flood Protection |
| Supported browsers | HTTPS support required |
| Transmission speed | 10/100/1000 Mbps |
| Transmission length | 100 m (per segment) |
| Degree of protection | IP00 |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Number of VPN tunnels | 250 |
| Remote Syslog Logging | On externals server |
| Power supply connection | via PCIe bus |
| Firewall data throughput | max. 940 Mbps (Router mode, default firewall rules, unidirectional throughput) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) 6 kV contact discharge, 8 kV air discharge |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Network Time Protocol (NTP) client | Client/server |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Internet Protocol Security (IPsec) mode | ESP tunnel / ESP transport |
| Virtual private network (VPN) throughput | max. 250 Mbps (Router mode, VPN unidirectional throughput) |
| 1:1 Network Address Translation (NAT) in the VPN | Supported |
| Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
Product Description
Router
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
