FL MC EF WDM-B SC

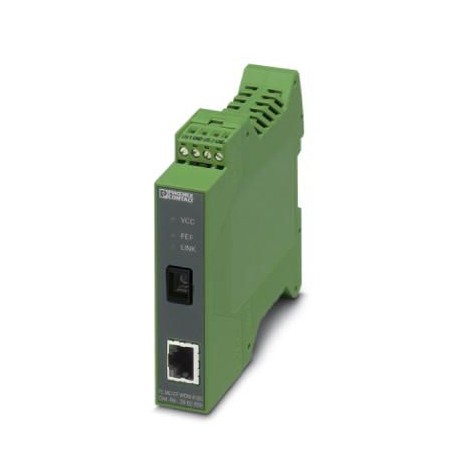

FL MC EF WDM-B SC 2902659 PHOENIX CONTACT FO converters
$0.00USD
4938 in stock
Key Specifications
GTIN:4046356669696
Orderkey:2902659
(General):18 V DC ... 30 V DC (as an alternative or redundant, via backplane bus contact and system current supply)
Catalog page:Page 336 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356669696 |
| Orderkey | 2902659 |
| (General) | 18 V DC ... 30 V DC (as an alternative or redundant, via backplane bus contact and system current supply) |
| Catalog page | Page 336 (C-6-2017) |
| Depth (Note) | 114.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 22.5 mm |
| (Dimensions) | 2000 m (With UL approval) |
| Height (Note) | 99 mm |
| Caption (Note) | Slim design |
| Country of origin | DE (Germany) |
| (Serial interface) | Single-mode fiberglass |
| Custom tariff number | 85176200 |
| (Ambient conditions) | Class I, Div. 2, Groups A, B, C, D |
| Altitude (Dimensions) | 5000 m (For restrictions see manufacturer's declaration) |
| (Optical interface FO) | Class I, Div. 2, Groups A, B, C, D |
| ATEX (Ambient conditions) | II 3 G Ex nA IIC T4 Gc X (Please follow the special installation instructions in the documentation!) |
| MTBF (Ambient conditions) | 492 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| Color (Ambient conditions) | green |
| Dimensional drawing (Note) | |
| Interface 1 (Power supply) | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| Signal LEDs (Power supply) | Activity, link status, 10/100 Mbps |
| ATEX (Optical interface FO) | II 3 G Ex nA IIC T4 Gc X |
| Connection method (General) | Plug-in screw terminal block (COMBICON), redundancy possible |
| Link through (Power supply) | Link fault pass through |
| No. of ports (Power supply) | 1 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Latency (Ambient conditions) | ± 1.3 µs (Store&Forward mode, 10/100 Mbps, depending on the frame size) |
| Protective circuit (General) | Reverse polarity protection |
| Signal (Optical interface FO) | ± 1 kV (Data line, asymmetrical) |
| Wavelength (Serial interface) | 1310 nm (Send) |
| Basic functions (Power supply) | Store-and-forward media converter |
| Supply voltage range (General) | 18 V DC ... 30 V DC (Screw connection) |
| Comments (Optical interface FO) | Criterion B |
| Net weight (Ambient conditions) | 120 g |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | RJ45 socket, shielded |
| Nominal supply voltage (General) | |
| DNV GL-EMC (Optical interface FO) | B |
| Degree of protection (Dimensions) | IP20 |
| Conformance (Optical interface FO) | CE-compliant |
| Designation (Optical interface FO) | Air clearances and creepage distances |
| Test result (Optical interface FO) | 25g, 11 ms period, half-sine shock pulse |
| Transmission length (Power supply) | 100 m (shielded twisted pair) |
| Transmission medium (Power supply) | Copper |
| Type of test (Optical interface FO) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| UL, USA/Canada (Ambient conditions) | cULus listed UL 508 |
| Connection method (Serial interface) | SC simplex |
| MDI-/MDI-X switchover (Power supply) | Auto-MDI(X) |
| Weight per Piece (excluding packing) | 120.000 g |
| Auto-negotiation modes (Power supply) | Auto |
| Housing material (Ambient conditions) | PA 6.6-FR |
| Overrange receiver (Serial interface) | -3 dBm (dynamic in link mode (average)) |
| Typical current consumption (General) | < 110 mA (24 V DC) |
| UL, USA/Canada (Optical interface FO) | cULus listed UL 508 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| DNV GL-Humidity (Optical interface FO) | A |
| Frequency range (Optical interface FO) | 0.15 MHz ... 80 MHz |
| Transmission medium (Serial interface) | Multi-mode fiberglass |
| DNV GL-Enclosure (Optical interface FO) | Required protection according to the Rules shall be provided upon installation on board |
| DNV GL-Vibration (Optical interface FO) | A |
| Noxious gas test (Optical interface FO) | ISA-S71.04-1985 G3 Harsh Group A |
| Contact discharge (Optical interface FO) | ± 6 kV (Test Level 3) |
| DNV GL-Temperature (Optical interface FO) | B |
| Electrical isolation (Ambient conditions) | according to IEEE 802.3 |
| Indirect discharge (Optical interface FO) | ± 6 kV |
| Conductor cross section AWG max. (General) | 14 |
| Conductor cross section AWG min. (General) | 24 |
| Electrical isolation (Optical interface FO) | according to IEEE 802.3 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 65 °C |
| Conductor cross section solid max. (General) | 2.50 mm² |
| Conductor cross section solid min. (General) | 0.20 mm² |
| Shipbuilding approval (Optical interface FO) | DNV GL |
| Standards/regulations (Optical interface FO) | EN 60950-1 |
| Permissible humidity (operation) (Dimensions) | 30 % ... 95 % (non-condensing) |
| Transmit capacity, maximum (Serial interface) | ≤ -8 dBm ((9/125 µm) dynamic in link mode (average)) |
| Transmit capacity, minimum (Serial interface) | ≥ ((9/125 µm) dynamic in link mode (average)) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible max. (General) | 2.50 mm² |
| Conductor cross section flexible min. (General) | 0.20 mm² |
| Minimum receiver sensitivity (Serial interface) | min. -31 dBm (dynamic in link mode (average)) |
| Electromagnetic compatibility (Ambient conditions) | Conformance with EMC Directive 2014/30/EU |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Electromagnetic compatibility (Optical interface FO) | Conformance with EMC Directive 2014/30/EU |
| Max. AWG conductor cross section, flexible (General) | 14 |
| Min. AWG conductor cross section, flexible (General) | 24 |
| Permissible humidity (storage/transport) (Dimensions) | 30 % ... 95 % (non-condensing) |
| Test voltage data interface/power supply (Ambient conditions) | 1.5 kVrms(50 Hz, 1 min.) |
| Transmission length incl. 3 dB system reserve (Serial interface) | 38 km (With F-E 9/125 0.36 dB/km) |
| Free from substances that could impair the application of coating (Optical interface FO) | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
Product Description
Fiber optic adapter (spare device B), for 10/100Base-T(X) duplex transmission to single Simplex fiberglass with WDM (Wavelength Division Multiplex) technology, SC Simplex fiber optic connection (1550/
