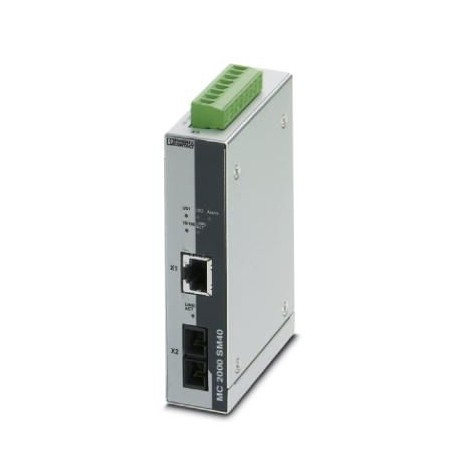

FL MC 2000T SM40 SC
FL MC 2000T SM40 SC 2891318 PHOENIX CONTACT FO converters
$0.00USD
3889 in stock
Key Specifications
GTIN:4046356869607
Orderkey:2891318
Catalog page:Page 339 (C-6-2017)
Depth (Note):70 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356869607 |
| Orderkey | 2891318 |
| Catalog page | Page 339 (C-6-2017) |
| Depth (Note) | 70 mm |
| Packing unit | 1 pc |
| Width (Note) | 28 mm |
| Height (Note) | 110 mm |
| Country of origin | TW (Taiwan) |
| (Digital outputs) | EN 61000-4-6 |
| (Serial interface) | 29 km (fiberglass with F-G 9/125 0.5 dB/km) |
| Custom tariff number | 85176200 |
| Altitude (Dimensions) | 4850 m |
| Shock (Digital outputs) | 300 m/s², 11 ms (IEC 60068-2) |
| Comments (Digital outputs) | Criterion A |
| Interface 1 (Power supply) | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| Signal LEDs (Power supply) | LNK/ACT, 100 |
| Connection method (General) | Plug-in screw terminal block (COMBICON), redundancy possible |
| Link through (Power supply) | Link fault pass through |
| No. of ports (Power supply) | 1 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Latency (Ambient conditions) | 865 ns (Pass-through mode) |
| Conformance (Digital outputs) | CE-compliant |
| Test result (Digital outputs) | 30g, 11 ms half-sine shock pulse |
| Wavelength (Serial interface) | 1310 nm |
| Supply voltage range (General) | 12 V DC ... 48 V DC |
| Type of test (Digital outputs) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Net weight (Ambient conditions) | 300.3 g |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | RJ45 socket, shielded |
| Nominal supply voltage (General) | 24 V DC |
| UL, USA/Canada (Digital outputs) | Class I, Div. 2, Groups A, B, C, D |
| Degree of protection (Dimensions) | IP20 |
| Output name (Optical interface FO) | Relay output |
| Transmission length (Power supply) | 100 m (twisted pair, shielded) |
| Transmission medium (Power supply) | Copper |
| Contact type (Optical interface FO) | N/C contact |
| UL, USA/Canada (Ambient conditions) | Class I, Div. 2, Groups A, B, C, D |
| Connection method (Serial interface) | SC duplex |
| MDI-/MDI-X switchover (Power supply) | Auto-MDI(X) |
| Weight per Piece (excluding packing) | 300.300 g |
| Auto-negotiation modes (Power supply) | Auto |
| Housing material (Ambient conditions) | Aluminum |
| Typical current consumption (General) | 110 mA (24 V DC) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 10; |
| Mounting position (Ambient conditions) | On horizontal DIN rail NS 35 in acc. with EN 60715 |
| Transmission medium (Serial interface) | Single-mode fiberglass |
| Standards/regulations (Digital outputs) | EN 61000-4-5 |
| Number of outputs (Optical interface FO) | 1 |
| Serial transmission speed (Power supply) | 10/100 Mbps |
| Electrical isolation (Ambient conditions) | VCC // FE // Ethernet |
| Output description (Optical interface FO) | Alarm output |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 75 °C |
| Max. switching current (Optical interface FO) | 1 A |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Electromagnetic compatibility (Digital outputs) | Conformance with EMC Directive 2014/30/EU |
| Maximum switching voltage (Optical interface FO) | ≤ 250 V AC |
| Electromagnetic compatibility (Ambient conditions) | Conformance with EMC Directive 2014/30/EU |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Test voltage data interface/power supply (Ambient conditions) | 1500 V AC (500 V AC, 1 minute) |
| Transmission length incl. 3 dB system reserve (Serial interface) | 40 km (fiberglass with F-G 9/125 0.36 dB/km) |
Product Description
Fiber optic converter with connection for duplex SC optical fiber (1300 nm), for the conversion of 100 Base-TX into single-mode fiberglass with a maximum length of 40 km. Auto-MDI(X) function and exte
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
