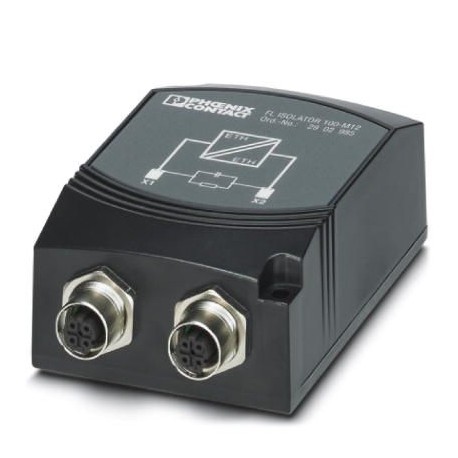

FL ISOLATOR 100-M12
FL ISOLATOR 100-M12 2902985 PHOENIX CONTACT Network isolator
$0.00USD
3605 in stock
Key Specifications
GTIN:4046356727815
Orderkey:2902985
Catalog page:Page 345 (C-6-2017)
Depth (Note):34 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356727815 |
| Orderkey | 2902985 |
| Catalog page | Page 345 (C-6-2017) |
| Depth (Note) | 34 mm |
| Packing unit | 1 pc |
| Width (Note) | 66 mm |
| Height (Note) | 91 mm |
| Country of origin | DE (Germany) |
| (Serial interface) | DIN EN 50153 |
| Custom tariff number | 85437090 |
| (Ambient conditions) | 3348 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
| Altitude (Dimensions) | 5000 m (For restrictions see manufacturer's declaration) |
| Interface (Power supply) | Ethernet |
| MTBF (Ambient conditions) | 38062 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| MTTF (Ambient conditions) | 18372 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| Signal (Serial interface) | ± 1 kV (Data line, asymmetrical) |
| Color (Ambient conditions) | black |
| Dimensional drawing (Note) | |
| Interface 1 (Power supply) | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| Interface 2 (Power supply) | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
| No. of ports (Power supply) | 1 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Conformance (Serial interface) | CE-compliant |
| Supply voltage range (General) | passive module, no supply voltage required |
| Test result (Serial interface) | 30g, 18 ms period, half-sine shock pulse |
| Net weight (Ambient conditions) | 155 g |
| Type of test (Serial interface) | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | M 12 connectors (D-coded, female) |
| Degree of protection (Dimensions) | IP54 |
| Protocols supported (Power supply) | Transparent protocol for IPv4 and IPv6 |
| Transmission length (Power supply) | ≤ 100 m (Total length across both ports (dependent on data rate and cable used)) |
| Noxious gas test (Serial interface) | ISA-S71.04-1985 G3 Harsh Group A |
| Weight per Piece (excluding packing) | 155.000 g |
| Housing material (Ambient conditions) | Plastic, FR 2010 |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Mounting position (Ambient conditions) | Wall mounting |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Serial transmission speed (Power supply) | 10/100 Mbps |
| Standards/regulations (Serial interface) | EN 61000-6-4 |
| Electrical isolation (Ambient conditions) | Port X1//port X2 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 75 °C (85°C for 10 min.; thereafter function can no longer be guaranteed - check device) |
| Permissible humidity (operation) (Dimensions) | 10 % ... 95 % |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Electromagnetic compatibility (Serial interface) | Conformance with EMC Directive 2014/30/EU |
| Electromagnetic compatibility (Ambient conditions) | Conformance with EMC Directive 2014/30/EU |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 75 °C |
| Insulation voltage input/output (Ambient conditions) | 250 Vrms |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % |
| Test voltage data interface/data interface (Ambient conditions) | 4 kV AC (50 Hz, 1 min.) |
Product Description
Passive network isolator e.g. galvanic separation in Ethernet networks. To protect Ethernet devices against potential differences up to 4 kV. Attachable for sending ranges up to 100 MBits/s. Ethernet
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
