FL EPA 2

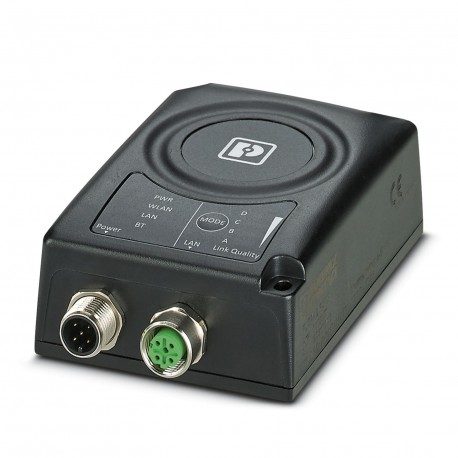

FL EPA 2 1005955 PHOENIX CONTACT Wireless module
$0.00USD
4827 in stock
Key Specifications
:WPA PSK (preshared key)
Type:Stand-Alone
Depth:33.2 mm
Width:67.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| WPA PSK (preshared key) | |
| Type | Stand-Alone |
| Depth | 33.2 mm |
| Width | 67.8 mm |
| Height | 92.7 mm |
| Number | 1 |
| Security | 802.11i |
| Interface | Ethernet |
| Application | Ethernet |
| Designation | Bluetooth / WLAN |
| Product type | Wireless module |
| Assembly note | Permanently installed |
| Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC |
| Mounting type | Wall mounting |
| Frequency band | 2.4 GHz |
| Supply current | typ. 54 mA (at 24 V DC) |
| Supply voltage | 24 V DC |
| Country support | Belgium |
| Frequency range | 2.402 GHz ... 2.48 GHz (Bluetooth) |
| Operating modes | Access point/client adapter for WLAN and Bluetooth |
| Article revision | 04 |
| Number of inputs | 1 |
| Connection method | M12 connector (A-coded, male) |
| Wireless licenses | Europe, USA, Canada, additional countries in the e-shop |
| Wireless standard | Bluetooth 2.1 + EDR |
| Note on dimensions | Without M12 connections |
| Profiles supported | PAN (NAP, PANU) |
| Transmission power | max. 16 dBm (Bluetooth: 10 dBm) |
| Transmission speed | 10/100 Mbps |
| Current consumption | max. 190 mA (at 9 V DC) |
| Note on application | Only for industrial use |
| Transmission length | 100 m (per segment) |
| Degree of protection | IP65 |
| Number of interfaces | 1 |
| Supply voltage range | 9 V DC ... 30 V DC |
| Transmission physics | Copper |
| Connection technology | M12 connector |
| Standards/regulations | EN 61000-4-2 |
| Antenna connection method | (Internal) |
| Note on the connection method | Auto negotiation and autocrossing |
| Number of wireless interfaces | 1 IEEE 802.11 a/b/g/n, Bluetooth 2.1+EDR, Bluetooth LE 4.0 |
| Ambient temperature (operation) | -40 °C ... 65 °C |
| Permissible humidity (operation) | 5 % ... 93 % (non-condensing) |
| Wireless modules that can be connected | 7 (BT 2.1+EDR, NAP-Mode) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) | non-condensing |
| Maximum power dissipation for nominal condition | 1.7 W |
Product Description
Combined wireless module Ethernet with Bluetooth and WLAN, internal antenna, WLAN: AP and Client, 2.4 and 5 GHz, Bluetooth: 2.1+EDR/4.0, PAN up to 7 connections, IP65, 9 ... 30 V DC, M12 connection, W
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
