FL CAT5 HEAVY

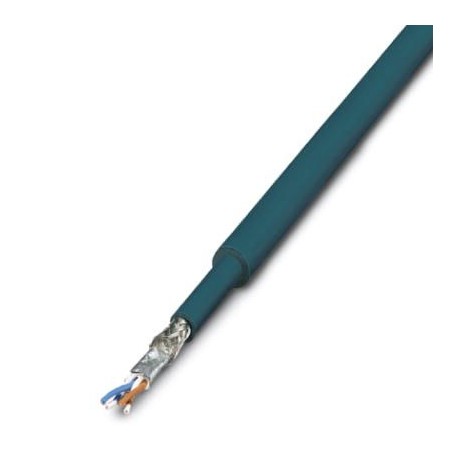

FL CAT5 HEAVY 2744814 PHOENIX CONTACT Cable
$0.00USD
4405 in stock
Key Specifications
GTIN:4017918600518
Note:Made to Order (non-returnable)
Orderkey:2744814
(General):No hazardous substances above threshold values
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918600518 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2744814 |
| (General) | No hazardous substances above threshold values |
| Catalog page | Page 390 (C-8-2015) |
| Packing unit | 1 M |
| (Cable type) | -5 °C ... 60 °C (cable, flexible installation) |
| Country of origin | DE (Germany) |
| China RoHS (General) | Environmentally friendly use period: unlimited = EFUP-e |
| Custom tariff number | 85444993 |
| Cable weight (Single wire) | 68 kg/km |
| Wave impedance (Single wire) | 100 Ω ±15 % |
| Conductor length (Single wire) | Free input (0.25 ... 1000.0 m) |
| Nominal voltage UN (Single wire) | 48 V AC |
| Transmission speed (Single wire) | 100 Mbps |
| Working capacitance (Single wire) | 48 nF (per kilometer) |
| Single wire, color (External sheath) | White/orange-orange (pair 1) |
| Weight per Piece (excluding packing) | 66.720 g |
| Single wire, material (External sheath) | Foam skin (polyethylene) |
| Cable abbreviation (Key Commercial Data) | J-02YS(ST) C HP 2 x 2 x 24 AWG |
| External sheath, color (Ambient conditions) | water blue RAL 5021 |
| Outer sheath, material (Ambient conditions) | Halogen-free compound, HM 2 in acc. with VDE 0207 |
| Ambient temperature (operation) (Cable type) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient temperature (storage/transport) (Cable type) | -40 °C ... 80 °C |
| Transmission characteristics (category) (Single wire) | CAT5 |
Product Description
CAT5-SF/UTP CABLE (J-02YS(ST)C HP 2 x 2 x 24 AWG), robust installation cable, 2 x 2 x 0.22 mm², rigid conductor, shielded, outer sheath: Diameter 7.8 mm, inner sheath: Diameter 5.75 mm ± 0.15 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
