FKN46NE800PPF

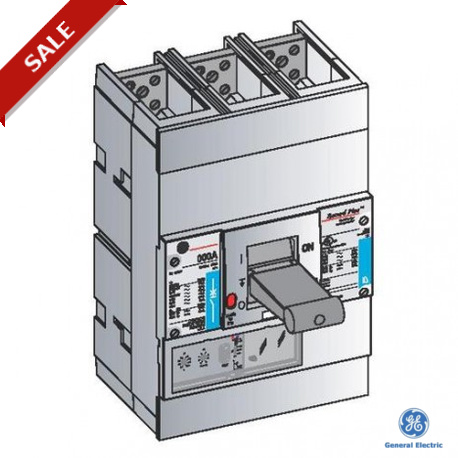

FKN46NE800PPF 435447 GENERAL ELECTRIC FKN 800 Breaker Icu 50 kA/415VAC Ue 690VAC 4P 4trips N100 800A Sensor ..
$0.00USD
4463 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000228
ETIM 6.0 (DIMENSIONS):EC000228
Weight (SPECIFICATIONS):15.1 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000228 |
| ETIM 6.0 (DIMENSIONS) | EC000228 |
| Weight (SPECIFICATIONS) | 15.1 kg |
| Trips (ORDER/DELIVERY STATUS) | 4 trips neutral 0+50+100% rated |
| Im (A) (ORDER/DELIVERY STATUS) | 750-12500 A |
| In (A) (ORDER/DELIVERY STATUS) | 800 A |
| Ir (A) (ORDER/DELIVERY STATUS) | 320-800 A |
| Series (ORDER/DELIVERY STATUS) | Circuit breaker (complete breaker) |
| Ui (V) (ORDER/DELIVERY STATUS) | 1000 V |
| NEMA 240V (ORDER/DELIVERY STATUS) | 85 kA |
| NEMA 480V (ORDER/DELIVERY STATUS) | 42 kA |
| Trip Unit (ORDER/DELIVERY STATUS) | Line & Generator protection (SMR1e selective) |
| Frame type (ORDER/DELIVERY STATUS) | K frame (800A/1250 A/1600A) |
| IEC 230VAC (ORDER/DELIVERY STATUS) | 85 kA |
| IEC 250VDC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 400VAC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 440VAC (ORDER/DELIVERY STATUS) | 42 kA |
| IEC 440VDC (ORDER/DELIVERY STATUS) | 36 kA |
| IEC 500VAC (ORDER/DELIVERY STATUS) | 36 kA |
| IEC 500VDC (ORDER/DELIVERY STATUS) | 36 kA |
| IEC 690VAC (ORDER/DELIVERY STATUS) | 20 kA |
| Measurements (ORDER/DELIVERY STATUS) | 320x280x160 mm |
| IEC 690VAC Ics (ORDER/DELIVERY STATUS) | 20 kA |
| IEC 690VAC Icu (ORDER/DELIVERY STATUS) | 20 kA |
| Number of poles (ORDER/DELIVERY STATUS) | 4P |
| Rating frame (A) (ORDER/DELIVERY STATUS) | 800 A |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Short-circuit capacity (kA) (ORDER/DELIVERY STATUS) | Normal 50 kA |
Product Description
FKN46NE800PPF
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated at 800A, the FK frame size is designed for use with the FG400 and 630 frame sizes. The design uses electronic trip units SMR1e and SMR1s available in a number of performance ranges and allowing a wide variety of setting options. The FK connection area features easy-to-access busbar connections or cable plugs for use with single or multiple copper or aluminium conductors.
