FKH436NT630PF

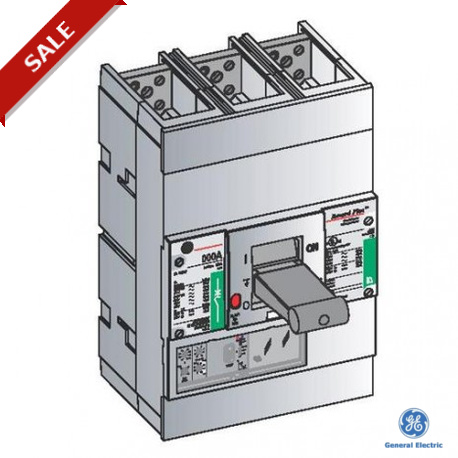

FKH436NT630PF 435462 GENERAL ELECTRIC FKH 800 Breaker Icu 80 kA/415VAC Ue 690VAC 4P 3trips 630A LTM
$0.00USD
4179 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000228
ETIM 6.0 (DIMENSIONS):EC000228
Weight (SPECIFICATIONS):15.1 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000228 |
| ETIM 6.0 (DIMENSIONS) | EC000228 |
| Weight (SPECIFICATIONS) | 15.1 kg |
| Trips (ORDER/DELIVERY STATUS) | 3 trips |
| Im (A) (ORDER/DELIVERY STATUS) | 3150-6300 A |
| In (A) (ORDER/DELIVERY STATUS) | 630 A |
| Ir (A) (ORDER/DELIVERY STATUS) | 500-630 A |
| Series (ORDER/DELIVERY STATUS) | Circuit breaker (complete breaker) |
| Ui (V) (ORDER/DELIVERY STATUS) | 1000 V |
| Trip Unit (ORDER/DELIVERY STATUS) | Line protection (thermalmagnetic) |
| Frame type (ORDER/DELIVERY STATUS) | K frame (800A/1250 A/1600A) |
| IEC 230VAC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 250VDC (ORDER/DELIVERY STATUS) | 80 kA |
| IEC 400VAC (ORDER/DELIVERY STATUS) | 80 kA |
| IEC 440VAC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 440VDC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 500VAC (ORDER/DELIVERY STATUS) | 42 kA |
| IEC 500VDC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 690VAC (ORDER/DELIVERY STATUS) | 25 kA |
| Measurements (ORDER/DELIVERY STATUS) | 320x280x160 mm |
| IEC 690VAC Ics (ORDER/DELIVERY STATUS) | 25 kA |
| IEC 690VAC Icu (ORDER/DELIVERY STATUS) | 25 kA |
| Number of poles (ORDER/DELIVERY STATUS) | 4P |
| Rating frame (A) (ORDER/DELIVERY STATUS) | 800 A |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Short-circuit capacity (kA) (ORDER/DELIVERY STATUS) | Hi-Break 80 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated at 800A, the FK frame size is designed for use with the FG400 and 630 frame sizes. The design allows the use of thermal-magnetic breaker(LT,ST). The FK connection area features easy-to-access busbar connections or cable plugs for use with single or multiple copper or aluminium conductors.
