In Stock Hot Product
FKDSO 2,5/ 2-R GY

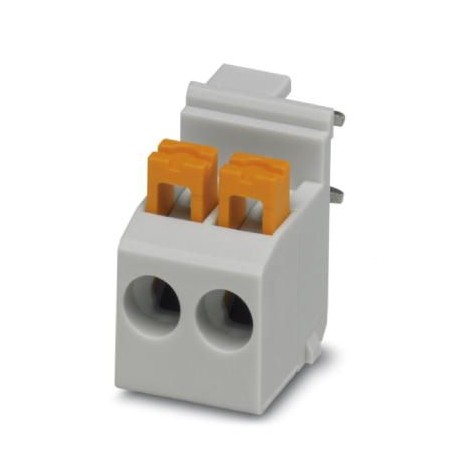

FKDSO 2,5/ 2-R GY 1007178 PHOENIX CONTACT PCB terminal block
$0.00USD
3499 in stock
Key Specifications
GTIN:4055626479071
Orderkey:1007178
Packing unit:1
Custom tariff number:85369010
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626479071 |
| Orderkey | 1007178 |
| Packing unit | 1 |
| Custom tariff number | 85369010 |
| (Key Commercial Data) | cULus Recognized |
| Pitch (Key Commercial Data) | 5 mm |
| Height (Key Commercial Data) | 24 mm |
| Levels (Key Commercial Data) | single-level |
| Approval (Key Commercial Data) | IECEE CB Scheme |
| Product type (Key Commercial Data) | Printed circuit board terminal |
| Connection method (Key Commercial Data) | Push-in spring connection |
| Number of positions (Key Commercial Data) | 2 |
| Rated current (IEC) (Key Commercial Data) | 22 |
| Rated voltage (IEC) (Key Commercial Data) | 250 |
| Connection cross section (Key Commercial Data) | 2.5 |
| Conductor connection direction (Key Commercial Data) | 0 ° |
Product Description
Terminal block for printed circuit board, nominal current: 22 A, nominal voltage (III/2): 250 V, nominal section: 2.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, famil
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
