FKC 2,5/ 5-STF-5,08 BD:A-E

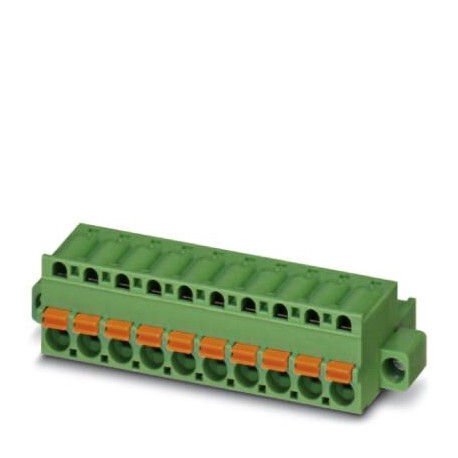

FKC 2,5/ 5-STF-5,08 BD:A-E 1704652 PHOENIX CONTACT PCB connector FKC 2,5/ 5-STF-5,08 BD:A-E 1704652
$0.00USD
4270 in stock
Key Specifications
GTIN:4046356731478
Orderkey:1704652
(Drawings):
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356731478 |
| Orderkey | 1704652 |
| (Drawings) | |
| Packing unit | 1 |
| Pitch (Drawings) | 5.08 mm |
| UNSPSC 11 (ETIM) | 39121409 |
| ETIM 3.0 (eCl@ss) | EC001121 |
| ETIM 4.0 (eCl@ss) | EC002638 |
| ETIM 5.0 (eCl@ss) | EC002638 |
| ETIM 6.0 (eCl@ss) | EC002638 |
| ETIM 7.0 (eCl@ss) | EC002638 |
| UNSPSC 13.2 (ETIM) | 39121409 |
| UNSPSC 18.0 (ETIM) | 39121409 |
| UNSPSC 19.0 (ETIM) | 39121409 |
| UNSPSC 20.0 (ETIM) | 39121409 |
| UNSPSC 21.0 (ETIM) | 39121409 |
| UNSPSC 6.01 (ETIM) | 30211810 |
| UNSPSC 12.01 (ETIM) | 39121409 |
| Custom tariff number | 85366990 |
| UNSPSC 7.0901 (ETIM) | 39121409 |
| (Ambient conditions) | Test passed |
| (Connection capacity) | Cross section: 2.5 mm²; Length: 10 mm |
| Result (Pull-out test) | Test passed |
| Plug-in system (Drawings) | CLASSIC COMBICON |
| Type of contact (Drawings) | Female connector |
| Number of levels (Drawings) | 1 |
| Connection method (Drawings) | Push-in spring connection |
| Note (Packaging information) | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Range of articles (Drawings) | FKC 2,5/..-STF |
| eCl@ss 4.0 (Classifications) | 272607xx |
| eCl@ss 4.1 (Classifications) | 27260701 |
| eCl@ss 5.0 (Classifications) | 27260701 |
| eCl@ss 5.1 (Classifications) | 27261100 |
| eCl@ss 6.0 (Classifications) | 27261100 |
| eCl@ss 7.0 (Classifications) | 27440401 |
| eCl@ss 8.0 (Classifications) | 27440309 |
| eCl@ss 9.0 (Classifications) | 27440309 |
| No. of cycles (Pull-out test) | 25 |
| Specification (Pull-out test) | IEC 60512-15-1:2008-05 |
| Nom. voltage (Item properties) | 320 V |
| Number of positions (Drawings) | 5 |
| Number of potentials (Drawings) | 5 |
| Rated voltage (Item properties) | 320 V |
| Dimensional test (Pull-out test) | Test passed IEC 60512-1-2:2002-02 |
| Number of connections (Drawings) | 5 |
| Nominal current (Item properties) | 12 A |
| pluggable (Electrical parameters) | Yes |
| Cold stress (Durability tests (B)) | -40 °C/2 h |
| Note (Specifications for ferrules) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Specification (Climatic tests (D)) | IEC 61984:2008-10 |
| Visual examination (Pull-out test) | Test passed IEC 60512-1-1:2002-02 |
| Test force per pos. (Pull-out test) | 26 N |
| (Termination and connection method) | 2.5 mm² / flexible / > 50 N |
| Brief article description (Drawings) | Printed-circuit board connector |
| Specification (Durability tests (B)) | ISO 6988:1985-02 |
| Specification (Mechanical tests (A)) | IEC 60512-9-1:2010-03 |
| Type of note (Packaging information) | Notes on operation |
| Resistance of marking (Pull-out test) | Test passed IEC 60068-2-70:1995-12 |
| Thermal stress (Durability tests (B)) | 100 °C/168 h |
| Rated voltage (II/2) (Item properties) | 630 V |
| Corrosive stress (Durability tests (B)) | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Housing color (Material data - contact) | green (6021) |
| Polarization and coding (Pull-out test) | Test passed IEC 60512-13-5:2006-02 |
| Rated voltage (III/2) (Item properties) | 320 V |
| Stripping length (Electrical parameters) | 10 mm |
| (Environmental and durability tests (E)) | No hazardous substances above threshold values |
| Connection method (Electrical parameters) | Push-in spring connection |
| Pitch (Material data – actuating element) | 5.08 mm |
| Contact resistance R1 (Mechanical tests (A)) | 1.5 mΩ |
| Contact resistance R2 (Mechanical tests (A)) | 1.6 mΩ |
| Rated surge voltage (II/2) (Item properties) | 4 kV |
| Insulating material (Material data - contact) | PA |
| Insulating material (Material data - housing) | PBT |
| Rated surge voltage (III/2) (Item properties) | 4 kV |
| Rated surge voltage (III/3) (Item properties) | 4 kV |
| Contact material (Specifications for ferrules) | Cu alloy |
| Type of packaging (Dimensions for the product) | packed in cardboard |
| Pieces per package (Dimensions for the product) | 50 |
| Dimension a (Material data – actuating element) | 20.32 mm |
| Pull-out test (Termination and connection method) | IEC 60999-1:1999-11 |
| Recommended crimping pliers (Connection capacity) | 1212034 CRIMPFOX 6 |
| Width [ w ] (Material data – actuating element) | 35.5 mm |
| Height [ h ] (Material data – actuating element) | 15 mm |
| Insertion/withdrawal cycles (Mechanical tests (A)) | 25 |
| Length [ l ] (Material data – actuating element) | 2.73 mm |
| Withdraw strength per pos. approx. (Pull-out test) | 7 N |
| China RoHS (Environmental and durability tests (E)) | Environmentally friendly use period: unlimited = EFUP-e |
| Insertion strength per pos. approx. (Pull-out test) | 7 N |
| Insulating material group (Material data - contact) | I |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| CTI according to IEC 60112 (Material data - housing) | 600 |
| Conductor cross section solid (Electrical parameters) | 0.2 mm² ... 2.5 mm² |
| Surface characteristics (Specifications for ferrules) | hot-dip tin-plated |
| Specification (Mechanical tests according to standard) | IEC 60664-1:2007-04 |
| Denomination packing units (Dimensions for the product) | Pcs. |
| Conductor cross section flexible (Electrical parameters) | 0.2 mm² ... 2.5 mm² |
| Power-frequency withstand voltage (Durability tests (B)) | 2.21 kV |
| Power-frequency withstand voltage (Mechanical tests (A)) | 2.21 kV |
| Cylindrical gauge a x b / diameter (Electrical parameters) | 2.8 mm x 2.0 mm / 2.0 mm |
| Result, degree of protection, IP code (Climatic tests (D)) | Finger safety with IP20 test finger |
| Conductor cross section AWG / kcmil (Electrical parameters) | 24 ... 12 |
| Ambient temperature (assembly) (General product information) | -5 °C ... 100 °C |
| Ambient temperature (operation) (General product information) | -40 °C ... 100 °C (dependent on the derating curve) |
| Impulse withstand voltage at sea level (Durability tests (B)) | 4.8 kV |
| Impulse withstand voltage at sea level (Mechanical tests (A)) | 4.8 kV |
| Test for conductor damage and slackening (Ambient conditions) | IEC 60999-1:1999-11 |
| Test – repeated connection and release (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Flammability rating according to UL 94 (Material data - housing) | V0 |
| Insulation resistance, neighboring positions (Mechanical tests (A)) | > 0.6 TΩ |
| DiagramType: FKC 2,5/..-STF-5,08 with IC 2,5/..-STGF-5,08 (Drawings) | |
| Metal surface contact area (top layer) (Specifications for ferrules) | Tin (4 - 8 µm Sn) |
| Ambient temperature (storage/transport) (General product information) | -40 °C ... 70 °C |
| Metal surface terminal point (top layer) (Specifications for ferrules) | Tin (4 - 8 µm Sn) |
| Clearances and creepage distances (Mechanical tests according to standard) | IEC 60664-1:2007-04 |
| Withdraw strength per pos. approx. (Air clearances and creepage distances) | 7 N |
| Insertion strength per pos. approx. (Air clearances and creepage distances) | 7 N |
| Minimum creepage distance value (II/2) (Mechanical tests according to standard) | 3.2 mm |
| Minimum creepage distance value (III/2) (Mechanical tests according to standard) | 3 mm |
| Minimum creepage distance value (III/3) (Mechanical tests according to standard) | 4 mm |
| Ferrules with insulating collar, according to DIN 46228‑4 (Connection capacity) | Cross section: 0.5 mm²; Length: 8 mm ... 10 mm |
| Contact holder in insert requirements >20 N (Air clearances and creepage distances) | Test passed |
| Polarization when inserted requirement >20 N (Air clearances and creepage distances) | Test passed |
| Ferrules without insulating collar, according to DIN 46228‑1 (Connection capacity) | Cross section: 0.5 mm²; Length: 8 mm ... 10 mm |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Minimum clearance - inhomogeneous field (II/2) (Mechanical tests according to standard) | 3 mm |
| Minimum clearance - inhomogeneous field (III/2) (Mechanical tests according to standard) | 3 mm |
| Minimum clearance - inhomogeneous field (III/3) (Mechanical tests according to standard) | 3 mm |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Conductor cross section / conductor type / tensile force (Termination and connection method) | 0.2 mm² / solid / > 10 N |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.25 mm² ... 2.5 mm² |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve (Electrical parameters) | 0.5 mm² ... 1.5 mm² |
Product Description
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Female connection, Number o
