FGWB4

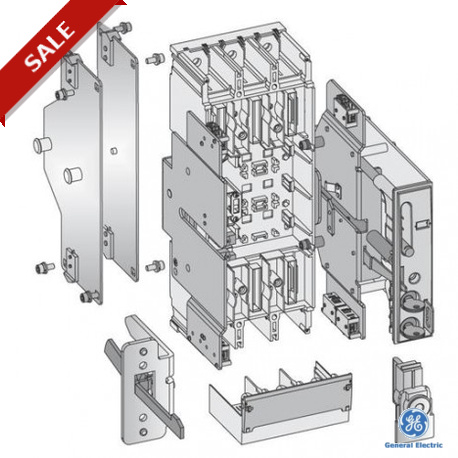

FGWB4 432556 GENERAL ELECTRIC FG-Withdrawable type Convert Set fixed to DrawOut 4pole
$0.00USD
3368 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC002498
ETIM 6.0 (DIMENSIONS):EC002498
Weight (SPECIFICATIONS):14 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC002498 |
| ETIM 6.0 (DIMENSIONS) | EC002498 |
| Weight (SPECIFICATIONS) | 14 kg |
| Range (ORDER/DELIVERY STATUS) | Connection / Mounting |
| Series (ORDER/DELIVERY STATUS) | Accessories |
| Frame type (ORDER/DELIVERY STATUS) | G frame (400A/630A) |
| Measurements (ORDER/DELIVERY STATUS) | 361x260x233.5 mm |
| Number of poles (ORDER/DELIVERY STATUS) | 4P |
| Accessory Detail (ORDER/DELIVERY STATUS) | Convert Set fixed to DrawOut |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Type of Accessory (ORDER/DELIVERY STATUS) | Withdrawable type |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
DrawoutA drawout version allows one to visibly and positively disconnect the mains supply form the installation. Like on the plus-in device, interchanging breakers quickly, safely and effectively is one of the key features of Record Plus drawout. It is made up of a breaker ("standard" fixed front connection version), a set of plugs and a trip mechanism that are fitted to the breaker, a Monoblock base into which the breaker is plugged and a metal support cradle. The cradle allows for placing the breaker in on of the three positions :
