FGRS/0P-0E

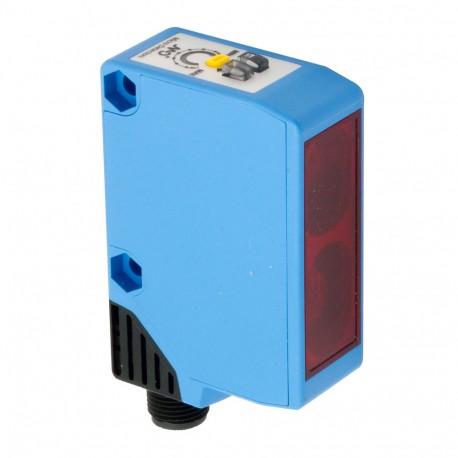

FGRS/0P-0E MICRO DETECTORS Photoelectric sensor Cubic photoelectric BGS, adjustment 310 mm PNP L/D plug M12
$0.00USD
4644 in stock
Key Specifications
Weight:40g
Emission:Red visible led
Material:PBT
Approvals:CE
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 40g |
| Emission | Red visible led |
| Material | PBT |
| Approvals | CE |
| Dimensions | 20x44,9x65mm |
| Connections | M12 plug |
| Output type | PNP,NPN |
| Load current | ≤ 100mA |
| LED indicators | Red led indicator |
| Optic position | Axial |
| Output Function | LO/DO selectable |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc (limit voltage) |
| Function Principle | Background suppression |
| Max ripple content | 5Vpp |
| Output voltage drop | 1,8V max @ 100mA |
| Switching frequency | 160Hz |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | STFG 00 mounting bracket |
| Operating temperature | -25°C…+55°C |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-28 |
| No-Load supply current | 35mA |
| Sensitivity adjustment | Potentiometer 2 turns with position indicator |
| Nominal sensing distance | 90…310mm with white target 90% 100x100mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 10,000Lux (minimum sunlight), 3,000 min HF lamp |
| Impulsive Overvoltage Protection | Yes |
Product Description
FGRS/0P-0E Photoelectric sensorCubic photoelectricBGS adj.310 mm PNP L/D conn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
