FGRHD/0N-0E

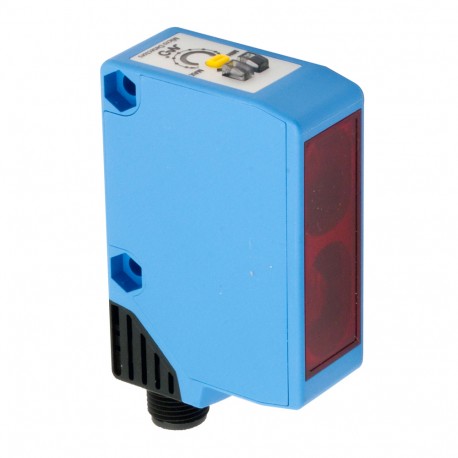

FGRHD/0N-0E MICRO DETECTORS Photoelectric sensor Cubic photoelectric E +R, adjustment 50 m NPN L/D plug M12
$0.00USD
4829 in stock
Key Specifications
Weight:80g
Emission:Led Rosso
Material:ABS
Approvals:CE
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 80g |
| Emission | Led Rosso |
| Material | ABS |
| Approvals | CE |
| Dimensions | 20x44,9x60mm |
| Connections | Uscita connettore M12 |
| Output type | NPN |
| Emitter Code | FGRH/00-0E |
| Load current | ≤ 100mA (ricevitore) |
| Receiver Code | FGRD/0N-0E |
| LED indicators | Indicatore led rosso |
| Output Function | LO/DO selezionabile |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc (tensione limite) |
| Function Principle | A barriera |
| Max ripple content | 5Vpp |
| Output voltage drop | 1.8V max @ 100mA (ricevitore) |
| Switching frequency | 1kHz |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | Staffa di montaggio STFG 00 |
| Operating temperature | -25°C…+55°C |
| Shocks and vibrations | Vibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27 |
| No-Load supply current | ≤ 35mA (emettitore), ≤ 20mA (ricevitore) |
| Sensitivity adjustment | Potenziometro 2 giri con indicatore di posizione (emettitore) |
| Nominal sensing distance | 50m |
| Short-circuit protection | Short circuit, overcurrent, overvoltage |
| Reverse Polarity Protection | Sì |
| Interference to external light | 10,000Lux luce solare minima 3,000Lux lampada HF |
| Impulsive Overvoltage Protection | Sì |
Product Description
FGRHD/0N-0E Photoelectric sensorCubic photoelectricE +R adj.50 m NPN L/D conn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
