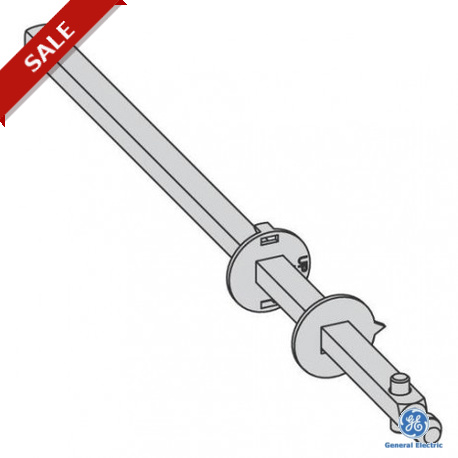

FGNRE 434735 GENERAL ELECTRIC FG-Rotary Handle Elongator Set 600mm Standard
$0.00USD
3798 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC002498
ETIM 6.0 (DIMENSIONS):EC002498
Weight (SPECIFICATIONS):0.5 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC002498 |
| ETIM 6.0 (DIMENSIONS) | EC002498 |
| Weight (SPECIFICATIONS) | 0.5 kg |
| Range (ORDER/DELIVERY STATUS) | Operators |
| Series (ORDER/DELIVERY STATUS) | Accessories |
| Frame type (ORDER/DELIVERY STATUS) | G frame (400A/630A) |
| Number of poles (ORDER/DELIVERY STATUS) | 3P / 4P |
| Accessory Detail (ORDER/DELIVERY STATUS) | Rotary handle - elongator set >300mm |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Type of Accessory (ORDER/DELIVERY STATUS) | Rotary handles |
Product Description
FGNRE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The Record Plus rotary handle is specifically designed to allow the user to change the linear motion of the breaker to a rotation over a 90 degree angle. This can be accomplished by simply adding an adaption box to the breaker front. The design is universal for the whole breaker line and has the "OFF" position placed at 3 o'clock and the "ON" position at 6 o'clock. The third breaker position "TRIP" is located between the "ON" and the "OFF" position. The design has room for two early closing and late opening contact blocks that, in order to save installation time, are delivered pre-mounted and pre-wired with a specific rotary-handle device. Each Record Plus rotary handle is designed to allow the user to place one to three 5 to 8 mm padlocks to lock the breaker in the "OFF" position.
