FGN37DN400NF

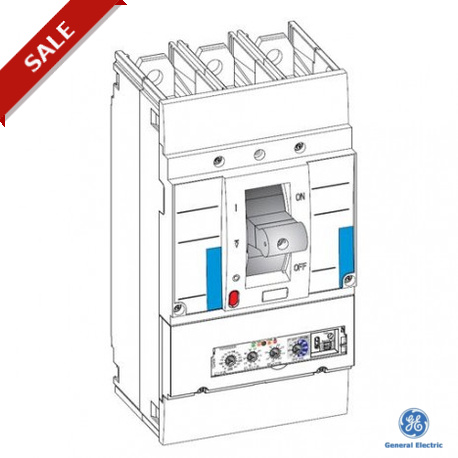

FGN37DN400NF 438468 GENERAL ELECTRIC FGN 630 Breaker Icu 50 kA/415VAC Ue 690VAC 3P 400A PremEon Mag Break
$0.00USD
4959 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000228
ETIM 6.0 (DIMENSIONS):EC000228
Weight (SPECIFICATIONS):4.5 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000228 |
| ETIM 6.0 (DIMENSIONS) | EC000228 |
| Weight (SPECIFICATIONS) | 4.5 kg |
| Trips (ORDER/DELIVERY STATUS) | 3 trips |
| Im (A) (ORDER/DELIVERY STATUS) | 800-4000 A |
| In (A) (ORDER/DELIVERY STATUS) | 400 A |
| Series (ORDER/DELIVERY STATUS) | Circuit breaker (complete breaker) |
| Ui (V) (ORDER/DELIVERY STATUS) | 750 V |
| NEMA 240V (ORDER/DELIVERY STATUS) | 100 kA |
| NEMA 480V (ORDER/DELIVERY STATUS) | 50 kA |
| Frame type (ORDER/DELIVERY STATUS) | G frame (400A/630A) |
| IEC 230VAC (ORDER/DELIVERY STATUS) | 85 kA |
| IEC 400VAC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 440VAC (ORDER/DELIVERY STATUS) | 42 kA |
| IEC 500VAC (ORDER/DELIVERY STATUS) | 30 kA |
| IEC 690VAC (ORDER/DELIVERY STATUS) | 10 kA |
| Measurements (ORDER/DELIVERY STATUS) | 262x138.7x123 mm |
| IEC 690VAC Ics (ORDER/DELIVERY STATUS) | 10 kA |
| IEC 690VAC Icu (ORDER/DELIVERY STATUS) | 10 kA |
| Number of poles (ORDER/DELIVERY STATUS) | 3P |
| Rating frame (A) (ORDER/DELIVERY STATUS) | 630 A |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| For Trip Unit- In (A) (ORDER/DELIVERY STATUS) | 400 A |
| Short-circuit capacity (kA) (ORDER/DELIVERY STATUS) | Normal 50 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated at 630A, the FG frame size includes all advanced features of the FD and FE frame sizes. The FG connection area features easy-to-access busbar connections. Cable lugs for use with single or multiple copper or aluminium conductors are optionally available. The breaker is designed for use of magnetic-only (PremEon Mag Break).
