FGJM4 - FGJM4 432849 GENERAL ELECTRIC FG-Protection Terminal shield medium with cover 4P
In Stock Hot Product

FGJM4

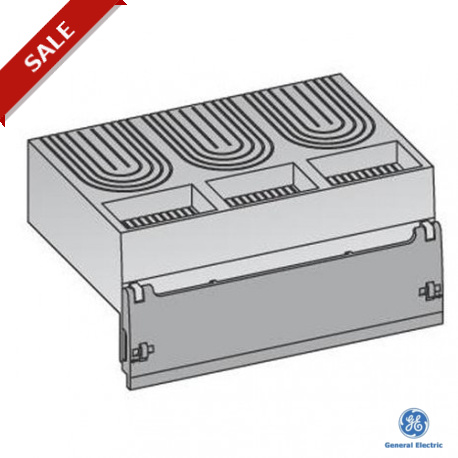

FGJM4 432849 GENERAL ELECTRIC FG-Protection Terminal shield medium with cover 4P

$0.00USD
4911 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC002035
ETIM 6.0 (DIMENSIONS):EC002035
Weight (SPECIFICATIONS):0.155 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support

Technical Specifications

ParameterValue
StatusActive
ETIM 5.0 (DIMENSIONS)EC002035
ETIM 6.0 (DIMENSIONS)EC002035
Weight (SPECIFICATIONS)0.155 kg
Range (ORDER/DELIVERY STATUS)Protection
Series (ORDER/DELIVERY STATUS)Accessories
Frame type (ORDER/DELIVERY STATUS)G frame (400A/630A)
Measurements (ORDER/DELIVERY STATUS)79.7x183.7x99.3 mm
Number of poles (ORDER/DELIVERY STATUS)4P
Accessory Detail (ORDER/DELIVERY STATUS)Medium Terminal shield with cover
Standard packing (ORDER/DELIVERY STATUS)1
Type of Accessory (ORDER/DELIVERY STATUS)Terminal shields

Product Description

FGJM4
Key Features
  • Industrial grade quality
  • RoHS compliant
  • CE certified
  • 1-year warranty

Technical Details

Terminal shieldsTerminal shields are installed on the incoming or outgoing side of the breaker thus achieving a heightened protection degree, independent of the type of connection used. For fixed breakers with rear connnection or the plug-in or withdrawble versions of the Record Plus™ breaker the installion of short terminal shields is mandatory and they are normally supplied as part of the kit.
