FFRL/BP-1E

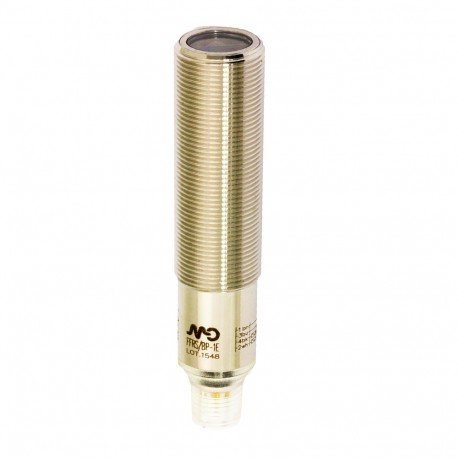

FFRL/BP-1E MICRO DETECTORS Photoelectric sensor Axial Retroreflectivex for transparent objects, 1m, adjustme..
$0.00USD
3090 in stock
Key Specifications
Notes:With RL113G or RL116 reflector
Weight:60g
Emission:Red (660nm)
Approvals:CE, Ex, Diversey, ECOLAB, cULus
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Notes | With RL113G or RL116 reflector |
| Weight | 60g |
| Emission | Red (660nm) |
| Approvals | CE, Ex, Diversey, ECOLAB, cULus |
| Dimensions | M18x1/L=83mm |
| Connections | M12 plug exit |
| Output type | PNP |
| Load current | 100mA |
| LED indicators | Green: ON-teach function available; OFF-teach function blocked; fast flashing-fine teach active; slow flashing- teach in progress Yellow: light state-excess gain |
| Optic position | Axial |
| Leakage current | ≤10μA |
| Output Function | NO+NC |
| Repeat Accuracy | 5% |
| Housing Material | Stainless steel AISI319 |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 50Nm |
| Function Principle | Polarized |
| Max ripple content | ≤10% |
| Output voltage drop | ≤2V IL=100mA |
| Switching frequency | 500Hz |
| Thermal drift of Sr | 10% Sr |
| Active Head Material | PA12 |
| Degree of protection | IP67, IP68 (1m, 7 days), IP69K |
| Supplied Accessories | Metallic nut (2x) |
| Operating temperature | -25°C…+80°C (without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤35mA (at Val=30V) |
| Sensitivity adjustment | Teach |
| Nominal sensing distance | 100…1.500mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 5.000lux (incandescent lamp), 10.000lux (sunlight) |
| Time delay before availability | 200ms |
Product Description
FFRL/BP-1E Photoelectric sensor Axial Retroreflectivex trasp.1m adj. PNP NO+NCconn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
