FFKDSA1/V1-7,62- 3 RD

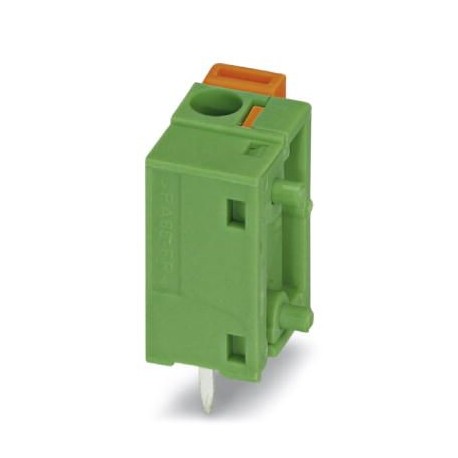

FFKDSA1/V1-7,62- 3 RD 1715001 PHOENIX CONTACT PCB terminal block
$0.00USD
4686 in stock
Key Specifications
GTIN:4055626383040
Orderkey:1715001
Packing unit:1
Custom tariff number:85369010
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626383040 |
| Orderkey | 1715001 |
| Packing unit | 1 |
| Custom tariff number | 85369010 |
| Pitch (Key Commercial Data) | 7.62 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 13.6 mm |
| Range of articles (Dimensions) | FFKDS(A)/V1 |
| Nominal current IN (Dimensions) | 17.5 A |
| Solder pin surface (Dimensions) | |
| Number of positions (Dimensions) | 3 |
| Dimension a (Key Commercial Data) | 15.24 mm |
| Pin spacing (Key Commercial Data) | 7.62 mm |
| Width [ w ] (Key Commercial Data) | 22.86 mm |
| Height [ h ] (Key Commercial Data) | 17 mm |
| Length [ l ] (Key Commercial Data) | 12.7 mm |
| Nominal cross section (Dimensions) | 1.5 mm² |
| Rated voltage (III/2) (Dimensions) | 630 V |
| Hole diameter (Key Commercial Data) | 1.3 mm |
| Solder pin [P] (Key Commercial Data) | 3.4 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | I |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 630 V, nominal cross-section: 1.5 mm², number of potentials: 3, number of rows: 1, number of poles per row:
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
