FFKDSA1/V-2,54-3

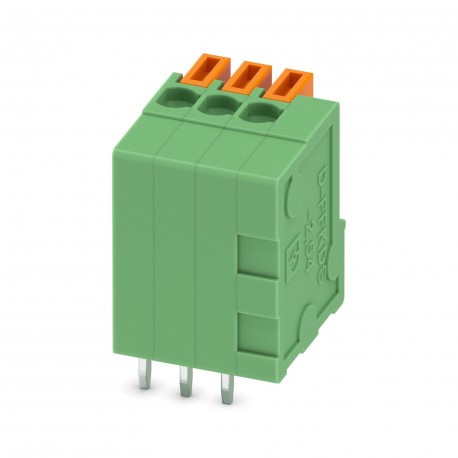

FFKDSA1/V-2,54- 3 1789320 PHOENIX CONTACT PCB terminal block
$0.00USD
4862 in stock
Key Specifications
:0.14 mm² / flexible / > 7 N
Note:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Type:PC terminal block can be aligned
Pitch:2.54 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 0.14 mm² / flexible / > 7 N | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Type | PC terminal block can be aligned |
| Pitch | 2.54 mm |
| Result | Test passed |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Frequency | 10 - 150 - 10 Hz |
| Width [w] | 10.12 mm |
| Height [h] | 17 mm |
| Length [l] | 12.6 mm |
| Pin layout | Linear pinning |
| Pin spacing | 5.08 mm |
| Sweep speed | 1 octave/min |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Product line | COMBICON Terminals XS |
| Product type | Printed circuit board terminal |
| Hole diameter | 1.1 mm |
| Mounting type | Wave soldering |
| Specification | IEC 60999-1:1990-05 |
| Number of rows | 1 |
| Pin dimensions | 0.5 x 0.8 mm |
| Product family | FFKDS(A) 0,5/..-V |
| Color (Housing) | green (6021) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 03 |
| Contact material | Cu alloy |
| Installed height | 13.6 mm |
| Stripping length | 11 mm |
| Connection method | Push-in spring connection |
| Type of packaging | packed in cardboard |
| Nominal current IN | 6 A |
| Nominal voltage UN | 160 V |
| Dimensional drawing | |
| Insulating material | PA |
| Number of positions | 3 |
| Number of potentials | 3 |
| Rated voltage (II/2) | 320 V |
| Nominal cross section | 0.5 mm² |
| Number of connections | 3 |
| Rated voltage (III/2) | 160 V |
| Rated voltage (III/3) | 63 V |
| Solder pin length [P] | 3.4 mm |
| Test duration per axis | 2.5 h |
| Surface characteristics | Tin-plated |
| Color (Actuating element) | orange (2003) |
| Insulating material group | I |
| Solder pins per potential | 2 |
| CTI according to IEC 60112 | 600 |
| Rated surge voltage (II/2) | 2.5 kV |
| Conductor cross section AWG | 26 ... 20 |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (III/3) | 2.5 kV |
| Conductor cross section rigid | 0.14 mm² ... 0.5 mm² |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Rated insulation voltage (II/2) | 320 V |
| Conductor cross section flexible | 0.14 mm² ... 0.5 mm² |
| Rated insulation voltage (III/2) | 160 V |
| Rated insulation voltage (III/3) | 63 V |
| minimum creepage distance (II/2) | 1.6 mm |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| minimum creepage distance (III/2) | 1.5 mm |
| minimum creepage distance (III/3) | 1.6 mm |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Metal surface soldering area (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface terminal point (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface soldering area (middle layer) | Nickel (2 - 3 µm Ni) |
| Metal surface terminal point (middle layer) | Nickel (2 - 3 µm Ni) |
| Insulation resistance, neighboring positions | 1012Ω |
| minimum clearance value - non-homogenous field (II/2) | 1.5 mm |
| minimum clearance value - non-homogenous field (III/2) | 1.5 mm |
| minimum clearance value - non-homogenous field (III/3) | 1.5 mm |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.14 mm² / solid / > 7 N |
Product Description
Terminal block for printed circuit board, nominal current: 6 A, nominal voltage (III/2): 160 V, nominal section: 0.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, articl
