FEV37DA125KF

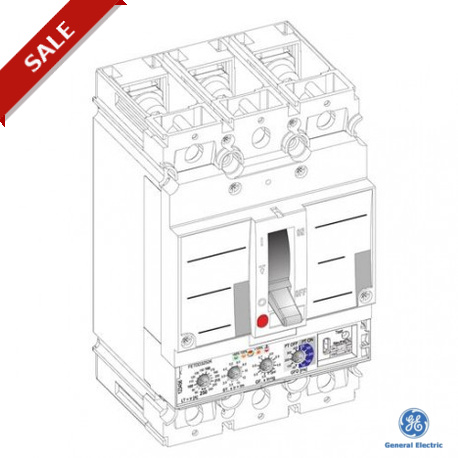

FEV37DA125KF 437540 GENERAL ELECTRIC FEV 250 Breaker Icu 36 kA/415VAC Ue 500VAC 3P 125A PremEon
$0.00USD
3302 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000228
ETIM 6.0 (DIMENSIONS):EC000228
Weight (SPECIFICATIONS):1.85 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000228 |
| ETIM 6.0 (DIMENSIONS) | EC000228 |
| Weight (SPECIFICATIONS) | 1.85 kg |
| Trips (ORDER/DELIVERY STATUS) | 3 trips |
| Im (A) (ORDER/DELIVERY STATUS) | 80-1625 A |
| In (A) (ORDER/DELIVERY STATUS) | 125 A |
| Ir (A) (ORDER/DELIVERY STATUS) | 40-125 A |
| Series (ORDER/DELIVERY STATUS) | Circuit breaker (complete breaker) |
| Ui (V) (ORDER/DELIVERY STATUS) | 690 V |
| NEMA 240V (ORDER/DELIVERY STATUS) | 65 kA |
| NEMA 480V (ORDER/DELIVERY STATUS) | 36 kA |
| Frame type (ORDER/DELIVERY STATUS) | E frame (160A/250A) |
| IEC 230VAC (ORDER/DELIVERY STATUS) | 65 kA |
| IEC 250VDC (ORDER/DELIVERY STATUS) | 25 kA |
| IEC 400VAC (ORDER/DELIVERY STATUS) | 36 kA |
| IEC 440VAC (ORDER/DELIVERY STATUS) | 25 kA |
| IEC 500VAC (ORDER/DELIVERY STATUS) | 18 kA |
| Measurements (ORDER/DELIVERY STATUS) | 170x104.5x95 mm |
| Number of poles (ORDER/DELIVERY STATUS) | 3P |
| Rating frame (A) (ORDER/DELIVERY STATUS) | 250 A |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| For Trip Unit- In (A) (ORDER/DELIVERY STATUS) | 125 A |
| Short-circuit capacity (kA) (ORDER/DELIVERY STATUS) | Effective 36 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated at 250A, the FE frame size is designed for side by side mounting with FD160 types in panels. FE sizes are equipped with an easily accessible busbar connection and can also be supplied with cable lugs for use with copper or aluminium conductors. The design allows the use of Electronic protection PremEon.
