FEN436TA080JF

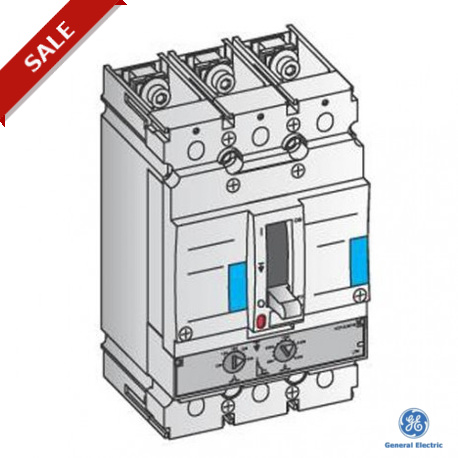

FEN436TA080JF 431838 GENERAL ELECTRIC FEN 160 Breaker Icu 50 kA/415VAC Ue 690VAC 4P 3trips 80A LTM
$0.00USD
3370 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000228
ETIM 6.0 (DIMENSIONS):EC000228
Weight (SPECIFICATIONS):2.66 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000228 |
| ETIM 6.0 (DIMENSIONS) | EC000228 |
| Weight (SPECIFICATIONS) | 2.66 kg |
| Trips (ORDER/DELIVERY STATUS) | 3 trips |
| Im (A) (ORDER/DELIVERY STATUS) | 400-800 A |
| In (A) (ORDER/DELIVERY STATUS) | 80 A |
| Ir (A) (ORDER/DELIVERY STATUS) | 64-80 A |
| Series (ORDER/DELIVERY STATUS) | Circuit breaker (complete breaker) |
| Ui (V) (ORDER/DELIVERY STATUS) | 750 V |
| NEMA 240V (ORDER/DELIVERY STATUS) | 100 kA |
| NEMA 480V (ORDER/DELIVERY STATUS) | 50 kA |
| Trip Unit (ORDER/DELIVERY STATUS) | Line protection (thermalmagnetic) |
| Frame type (ORDER/DELIVERY STATUS) | E frame (160A/250A) |
| IEC 230VAC (ORDER/DELIVERY STATUS) | 85 kA |
| IEC 250VDC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 400VAC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 440VAC (ORDER/DELIVERY STATUS) | 42 kA |
| IEC 440VDC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 500VAC (ORDER/DELIVERY STATUS) | 30 kA |
| IEC 500VDC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 690VAC (ORDER/DELIVERY STATUS) | 10 kA |
| Measurements (ORDER/DELIVERY STATUS) | 170x139.5x95 mm |
| IEC 690VAC Ics (ORDER/DELIVERY STATUS) | 10 kA |
| IEC 690VAC Icu (ORDER/DELIVERY STATUS) | 10 kA |
| Number of poles (ORDER/DELIVERY STATUS) | 4P |
| Rating frame (A) (ORDER/DELIVERY STATUS) | 160 A |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Short-circuit capacity (kA) (ORDER/DELIVERY STATUS) | Normal 50 kA |
Product Description
FEN436TA080JF
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated at 160A, the FE frame size is designed for side by side mounting with FD160 types in panels. FE sizes are equipped with an easily accessible busbar connection and can also be supplied with cable lugs for use with copper or aluminium conductors. The design allows the use of thermal-magnetic breaker(LT,ST).
