FEL47DD063JF

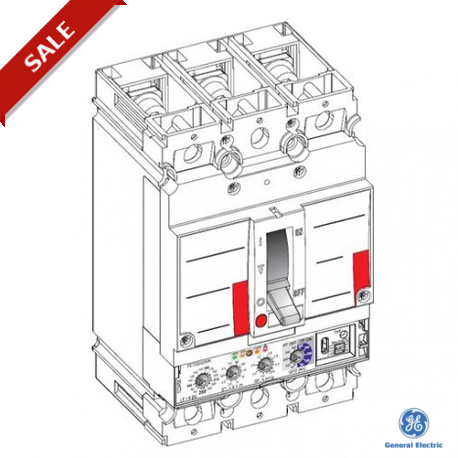

FEL47DD063JF 437463 GENERAL ELECTRIC FEL 160 Breaker Icu 150 kA/415VAC Ue 690VAC 4P 63A PremEon GF
$0.00USD
4910 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000228
ETIM 6.0 (DIMENSIONS):EC000228
Weight (SPECIFICATIONS):2.66 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000228 |
| ETIM 6.0 (DIMENSIONS) | EC000228 |
| Weight (SPECIFICATIONS) | 2.66 kg |
| Trips (ORDER/DELIVERY STATUS) | 4 trips neutral 0+50+100% rated |
| Im (A) (ORDER/DELIVERY STATUS) | 36-819 A |
| In (A) (ORDER/DELIVERY STATUS) | 63 A |
| Ir (A) (ORDER/DELIVERY STATUS) | 18-63 A |
| Series (ORDER/DELIVERY STATUS) | Circuit breaker (complete breaker) |
| Ui (V) (ORDER/DELIVERY STATUS) | 750 V |
| NEMA 240V (ORDER/DELIVERY STATUS) | 200 kA |
| NEMA 480V (ORDER/DELIVERY STATUS) | 130 kA |
| Frame type (ORDER/DELIVERY STATUS) | E frame (160A/250A) |
| IEC 230VAC (ORDER/DELIVERY STATUS) | 200 kA |
| IEC 250VDC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 400VAC (ORDER/DELIVERY STATUS) | 150 kA |
| IEC 440VAC (ORDER/DELIVERY STATUS) | 130 kA |
| IEC 440VDC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 500VAC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 500VDC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 690VAC (ORDER/DELIVERY STATUS) | 75 kA |
| Measurements (ORDER/DELIVERY STATUS) | 170x139.5x95 mm |
| IEC 690VAC Ics (ORDER/DELIVERY STATUS) | 18.75 kA |
| IEC 690VAC Icu (ORDER/DELIVERY STATUS) | 75 kA |
| Number of poles (ORDER/DELIVERY STATUS) | 4P |
| Rating frame (A) (ORDER/DELIVERY STATUS) | 160 A |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| For Trip Unit- In (A) (ORDER/DELIVERY STATUS) | 63 A |
| Short-circuit capacity (kA) (ORDER/DELIVERY STATUS) | Limitor 150 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated at 160A, the FE frame size is designed for side by side mounting with FD160 types in panels. FE sizes are equipped with an easily accessible busbar connection and can also be supplied with cable lugs for use with copper or aluminium conductors. The design allows the use of Ground fault protection PremEon.
