FEDFQ4

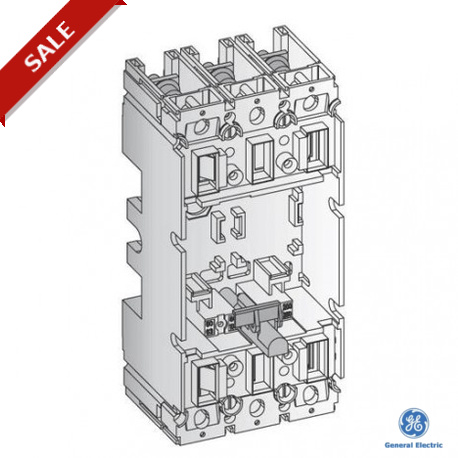

FEDFQ4 431842 GENERAL ELECTRIC FE-Plug in RCD Front connection fixed part 4P
$0.00USD
4178 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC002498
ETIM 6.0 (DIMENSIONS):EC002498
Weight (SPECIFICATIONS):1.4 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC002498 |
| ETIM 6.0 (DIMENSIONS) | EC002498 |
| Weight (SPECIFICATIONS) | 1.4 kg |
| Range (ORDER/DELIVERY STATUS) | Connection / Mounting |
| Series (ORDER/DELIVERY STATUS) | Accessories |
| Frame type (ORDER/DELIVERY STATUS) | E frame (160A/250A) |
| Measurements (ORDER/DELIVERY STATUS) | 300x139.4x81 mm |
| Number of poles (ORDER/DELIVERY STATUS) | 4P |
| Accessory Detail (ORDER/DELIVERY STATUS) | RCD Front connection - fixed parts |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Type of Accessory (ORDER/DELIVERY STATUS) | Plug in parts |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Plug-inThe record plus plug-in version allows quick, safe and easy interchange of breakers. It is made up of a "standard" fixed-front-connection breaker, a set of plugs, a trip mechanism fitted to the breaker and a Monoblock base into which the breaker is plugged. When the breaker is removed from the plug-in base it trips automatically (main contacts open) before the plug-in contact in the base are disconnected.The breaker can be operated (closed and opened) when removed from the plug-in base. On attempted insertion of a breaker in the "ON" position into the plug-in base, the Record Plus breaker trips before the plug-in contacts in the base are connected.The Record Plus plug-in version is available for :
