FDL436MC080GD

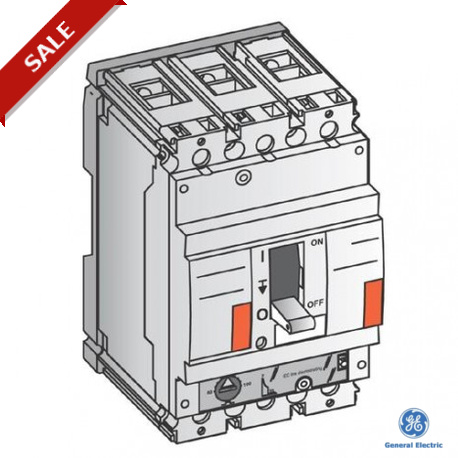

FDL436MC080GD 430537 GENERAL ELECTRIC FDL 160 Breaker Icu 150 kA/415VAC Ue 690VAC 4P 3trips 80A Mag Break
$0.00USD
4530 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000228
ETIM 6.0 (DIMENSIONS):EC000228
Weight (SPECIFICATIONS):1.3 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Status | Active |
| ETIM 5.0 (DIMENSIONS) | EC000228 |
| ETIM 6.0 (DIMENSIONS) | EC000228 |
| Weight (SPECIFICATIONS) | 1.3 kg |
| Trips (ORDER/DELIVERY STATUS) | 3 trips |
| Im (A) (ORDER/DELIVERY STATUS) | 800-1200 A |
| In (A) (ORDER/DELIVERY STATUS) | 80 A |
| Ir (A) (ORDER/DELIVERY STATUS) | 80 A |
| Series (ORDER/DELIVERY STATUS) | Circuit breaker (complete breaker) |
| Ui (V) (ORDER/DELIVERY STATUS) | 750 V |
| Trip Unit (ORDER/DELIVERY STATUS) | Motor protection (Magnetic only) |
| Frame type (ORDER/DELIVERY STATUS) | D frame (63A/160A) |
| IEC 230VAC (ORDER/DELIVERY STATUS) | 200 kA |
| IEC 250VDC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 400VAC (ORDER/DELIVERY STATUS) | 150 kA |
| IEC 440VAC (ORDER/DELIVERY STATUS) | 130 kA |
| IEC 440VDC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 500VAC (ORDER/DELIVERY STATUS) | 50 kA |
| IEC 500VDC (ORDER/DELIVERY STATUS) | 100 kA |
| IEC 690VAC (ORDER/DELIVERY STATUS) | 12 kA |
| Measurements (ORDER/DELIVERY STATUS) | 130x108x85 mm |
| IEC 690VAC Ics (ORDER/DELIVERY STATUS) | 6 kA |
| IEC 690VAC Icu (ORDER/DELIVERY STATUS) | 12 kA |
| Number of poles (ORDER/DELIVERY STATUS) | 4P |
| Rating frame (A) (ORDER/DELIVERY STATUS) | 160 A |
| Standard packing (ORDER/DELIVERY STATUS) | 1 |
| Short-circuit capacity (kA) (ORDER/DELIVERY STATUS) | Limitor 150 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Rated at 160A, the FD160 frame size is designed for use in both a DIN-rail environment with modular equipment and in industrial applications. It is supplied with IPXXB terminals suitable for direct connection of one or two conductors totalling up to 95 mm² and is available as magnetic-only motor circuit protector(Mag Break). The FD160 bridges the gap between residential miniature circuit breakers and industrial moulded case circuit breakers.
