FDE36TC100GF

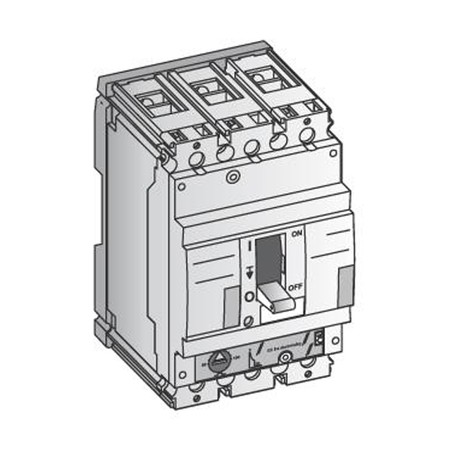

FDE36TC100GF 430279 GENERAL ELECTRIC FDE 160 Breaker Icu 25 kA/415VAC Ue 690VAC 3P 3 trips 100A LTM
$0.00USD
3067 in stock
Key Specifications
Trips:3 trips
Im (A):1000 A
In (A):100 A
Ir (A):100 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Trips | 3 trips |
| Im (A) | 1000 A |
| In (A) | 100 A |
| Ir (A) | 100 A |
| Series | Circuit breaker (complete breaker) |
| Ui (V) | 750 V |
| Weight | 1.050 kg |
| Category | Moulded Case Circuit Breakers |
| ETIM 5.0 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 6.0 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 7.0 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Trip Unit | Line protection (thermal) (NO RCD) |
| Frame type | D frame (63A/160A) |
| IEC 230VAC | 40 kA |
| IEC 400VAC | 25 kA |
| IEC 440VAC | 14 kA |
| IEC 500VAC | 12 kA |
| IEC 690VAC | 4.5 kA |
| Measurements | 130x81x85 mm |
| IEC 690VAC Icu | 4.5 kA |
| Number of poles | 3P |
| Rating frame (A) | 160 A |
| Standard packing | 1 |
| Short-circuit capacity (kA) | Effective 25 kA |
