FD-L31A

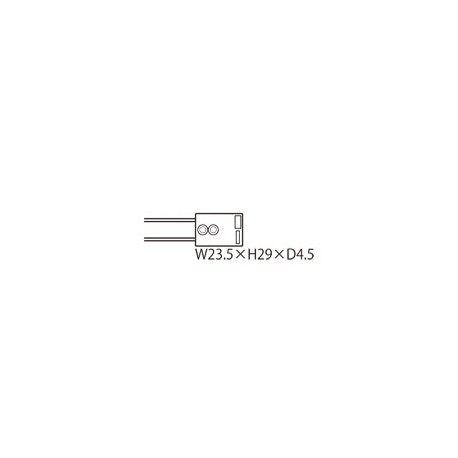

FD-L31A PANASONIC Fiber (convergent reflective, fixed focus, glass substrate detection type, 23.5 x 29 x 4.5..
$0.00USD
3711 in stock
Key Specifications
Item:Specifications
Details:Convergent Reflective type Fiber
Product:Convergent Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Convergent Reflective type Fiber |
| Product | Convergent Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Glass substrate detection |
| Application | Glass substrate detection Alignment |
| Part Number | FD-L31A |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Convergent Reflective Type Fiber |
| Sensing mode | Convergent Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-L31A |
| Fiber head length | W23.5 x H29 x D4.5 mm |
| Fiber cable length | 3 m |
| Sensing range（STD） | 4 to 33 mm 0.157 to 1.299 in (FX-500 series) |
| Sensing range（FAST） | 4 to 32 mm 0.157 to 1.260 in (FX-500 series) |
| Sensing range（H-SP） | 5 to 25 mm 0.197 to 0.984 in (FX-500 series) |
| Sensing range（HYPR） | 3 to 35 mm 0.118 to 1.378 in (FX-500 series) |
| Sensing range（LONG） | 4 to 33 mm 0.157 to 1.299 in (FX-500 series) |
| Sensing range（U-LG） | 4 to 33 mm 0.157 to 1.299 in (FX-500 series) |
| Allowable bending radius | R4 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | 0 degrees |
