FD-L21
FD-L21 PANASONIC Fiber (convergent reflective, glass board detection fiber type, 24 x 21 x 4mm, bending radi..
$0.00USD
3353 in stock
Key Specifications
Item:Specifications
Details:Convergent Reflective type Fiber
Product:Convergent Reflective type Fiber
Free-cut:Available
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Details | Convergent Reflective type Fiber |
| Product | Convergent Reflective type Fiber |
| Free-cut | Available |
| Fiber type | Glass substrate detection |
| Application | Glass substrate detection |
| Part Number | FD-L21 |
| Semi-custom | Fiber length change |
| With sleeve | No |
| Product name | Convergent Reflective Type Fiber |
| Sensing mode | Convergent Reflective type |
| Mounting lens | Not available |
| Beam direction | Top-view |
| Product Number | FD-L21 |

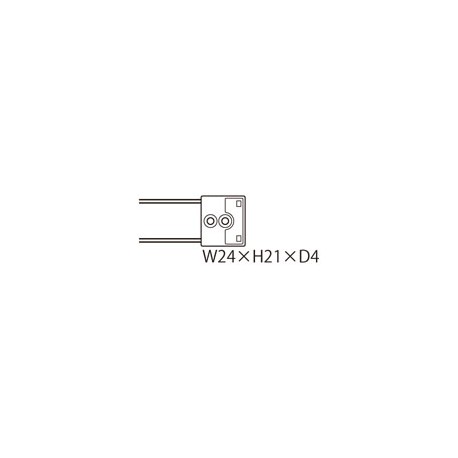

| Fiber head length | W24 x H21 x D4 mm |
| Fiber cable length | 2 m |
| Sensing range（STD） | 1.5 to 16 mm 0.059 to 0.630 in (FX-500 series) |
| Sensing range（FAST） | 2 to 15 mm 0.079 to 0.591in (FX-500 series) |
| Sensing range（H-SP） | 3 to 12 mm 0.118 to 0.472 in (FX-500 series) |
| Sensing range（HYPR） | 1 to 19 mm 0.039 to 0.748 in (FX-500 series) |
| Sensing range（LONG） | 1 to 18 mm 0.039 to 0.709 in (FX-500 series) |
| Sensing range（U-LG） | 1 to 18 mm 0.039 to 0.709 in (FX-500 series) |
| Allowable bending radius | R2 mm |
| Mounting protective tube | Not available |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
