FD 25/B

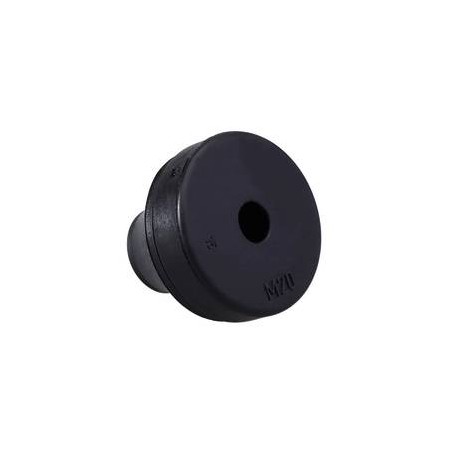

FD 25/B 50062894 WISKA Conical wall pass, black RAL 9005, IP66/67 for DN25, range from 11 to 17mm.
$0.00USD
4998 in stock
Key Specifications
Type (Features):FD 25
Material (Features):EPDM
Thread type (Features):M
Ø Drilling (Features):25 mm - 26 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | FD 25 |
| Material (Features) | EPDM |
| Thread type (Features) | M |
| Ø Drilling (Features) | 25 mm - 26 mm |
| Packing unit (Features) | 50 |
| Product Color (Features) | RAL 9005 |
| Temp. range max (Features) | 110 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 21,5 mm |
| Protection class (Features) | IP66 / IP67 |
| Wall thickness S (Features) | 1 mm - 4 mm |
| Order no. RAL 9005 (Features) | 50062894 |
| ETIM-Classification (Features) | EC000451 |
| Ø cable diameter max (Features) | 17 mm |
| Ø cable diameter min (Features) | 11 mm |
| Ø Connection thread D (Features) | 25 |
Product Description
FLIP cable grommet, EPDM, RAL 9005, M25
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
