FC5R/LP-0506-1F

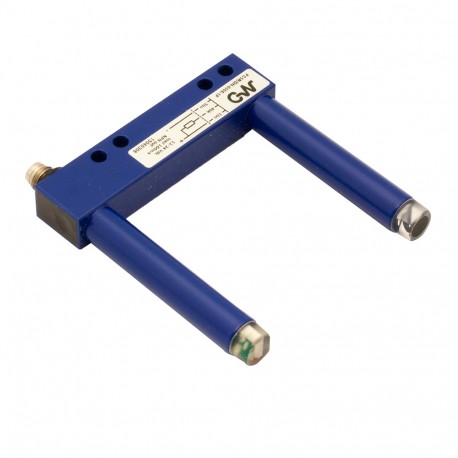

FC5R/LP-0506-1F MICRO DETECTORS Slot sensor 50mm wide RED LED PNP-NC M8
$0.00USD
3520 in stock
Key Specifications
Si:Yes
Weight:72g
Emission:Red LED, modulated
Approvals:CEUL
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Si | Yes |
| Weight | 72g |
| Emission | Red LED, modulated |
| Approvals | CEUL |
| Dimensions | Width slot detection 50mm - Depth slot detection 60mm |
| Connections | M8 plug 3 pin |
| Output type | PNP |
| Load current | 100mA |
| Output Function | LO |
| Housing Material | Painted aluminium |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 12-24Vdc |
| Max ripple content | ≤ 10% |
| Output voltage drop | ≤ 1,5V @ IL =100 mA |
| Storage temperature | - 40°C…+ 80°C |
| Switching frequency | 4kHz |
| Active Head Material | Polyamide/glass |
| Degree of protection | IP67 (EN60529) |
| Operating temperature | - 10°C…+ 60°C |
| No-Load supply current | ≤ 20mA |
| Sensitivity adjustment | No |
| Nominal sensing distance | 50mm |
| Short-circuit protection | Yes |
| minimum detectable object | 0,8mm |
| Reverse Polarity Protection | Yes |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
| Time delay before availability | 150ms |
Product Description
FC5R/LP-0506-1F Slot sensor 50mm wide RED LED PNP-NC M8
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
